Master-level “subtraction” art: in-depth transformation of Yueda Kia audio, an acoustic magic internal strength and mental method in a small space

“The essence of car audio modification has never been the’addition ‘of blindly piling up expensive equipment, but the art of precise and restrained’subtraction’ based on acoustic principles and profound listening insights!” This is not only our core concept, but also the cognitive innovation we brought to Yueda Kia owners after two unsatisfactory modifications. When the system adjustment is completed, the owner sincerely sighs: “It turns out that the sound field in the car can be so open and natural!” Next, we will disassemble it for you in detail, how to only passStrategic upgrade and millimeter-level precise adjustment of a high-performance DSP power amplifier, thus achieving a dimensional leap from “passive three-way frequency” to “fully active system”, completing the complete transcendence of previous solutions.

1. Breaking the core pain point: the “dimensionality reduction blow” of a DSP power amplifier, how to release the bound potential



Innate limitations of the original system architecture:
▶ The number of output channels of the original JBL DSP power amplifier is seriously insufficient, resulting in the three-way speaker in the front sound field only working in a “passive frequency division” mode. Just like an athlete whose hands and feet are tied, his individual potential cannot be displayed at all.
▶ The sound field performance is severely compressed, and all sound elements (vocals, musical instruments) seem to be “stuffed” near the instrument panel, mixed up, lacking hierarchy, positioning and proper sense of spatial depth.



Our “subtraction” art and precision upgrade:

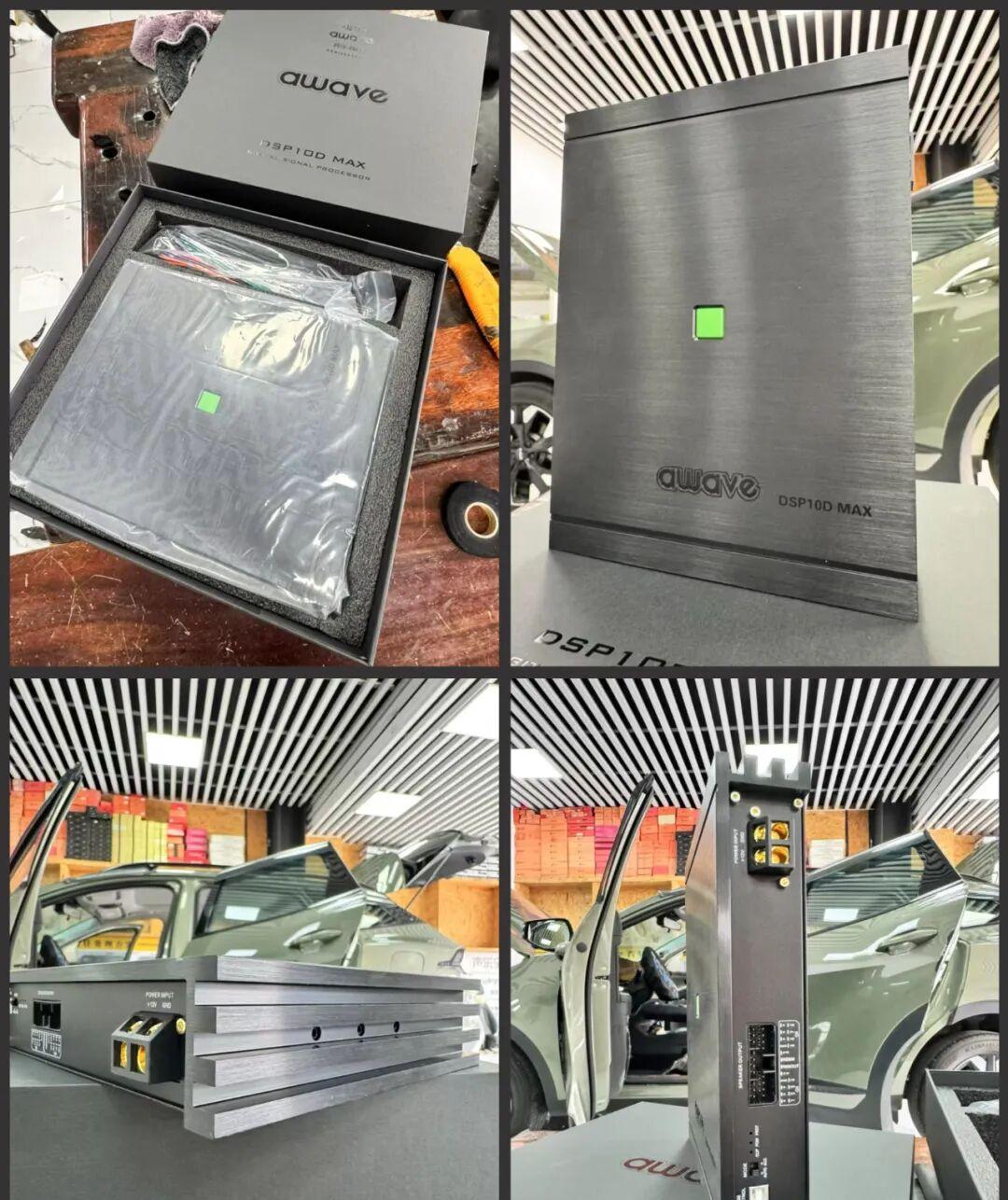

✔ Replace the core processor with 10 independent high-power (90 W/channel) outputsAiwei IV series DSP power amplifier。 The abundant independent channels enable it to independently drive each speaker unit (high, middle and mid-bass) in the front sound field in a “fully active frequency division” mode, realizing precise control and time alignment of each frequency band, and completely releasing the true strength of the unit.
✔ The device is cleverly hidden and installed on the side wall of the trunk. On the premise of taking up almost no practical space, its powerful processing power allows the width and depth of the entire sound field to be obtainedAmazing expansion of more than 40%。

✅ [Video recording comparison] Great changes in the sound field before and after the core upgrade of DSP power amplifier:
“The sound before the modification seems to be’squashed’on the instrument panel plane, which is chaotic; After the modification, the singer’s mouth shape is clearly condensed in the center of the instrument panel, while various musical instruments are naturally distributed in the distance on both sides, forming a three-dimensional space with a clear sense of stage. For such a narrow environment in the car, only such a well-defined and accurately positioned sound can be listened to for a long time and intriguing.”

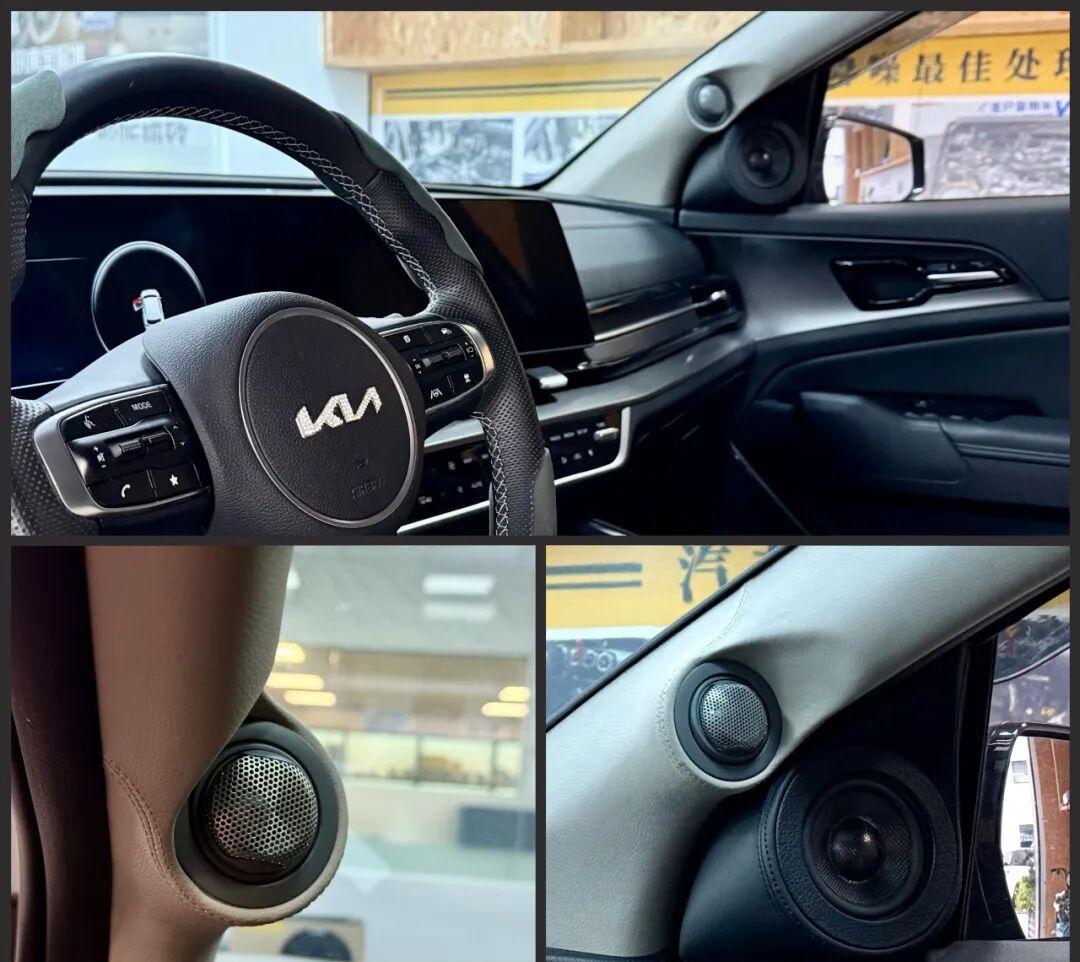

2. A-pillar acoustic remodeling: The gap of 5 degrees is the world of difference between “one lump of sound” and “one stage”



Common misunderstandings in the industry:
“Many shops regard the A-pillar inverted mold as just a’beauty decoration ‘project, and completely ignore its core’acoustic projection triangle’ construction function. The wrong sound pointing will cause the sound field to be severely narrowed and the image will be blurred. In the end, all the sounds you hear are like a’lump ‘glued together, with no separation or sense of space at all.”



As a senior music broadband technician often says: “A truly top tuner must be proficient in installing physical acoustics, while a technician who only knows how to install may not know how to tune.”

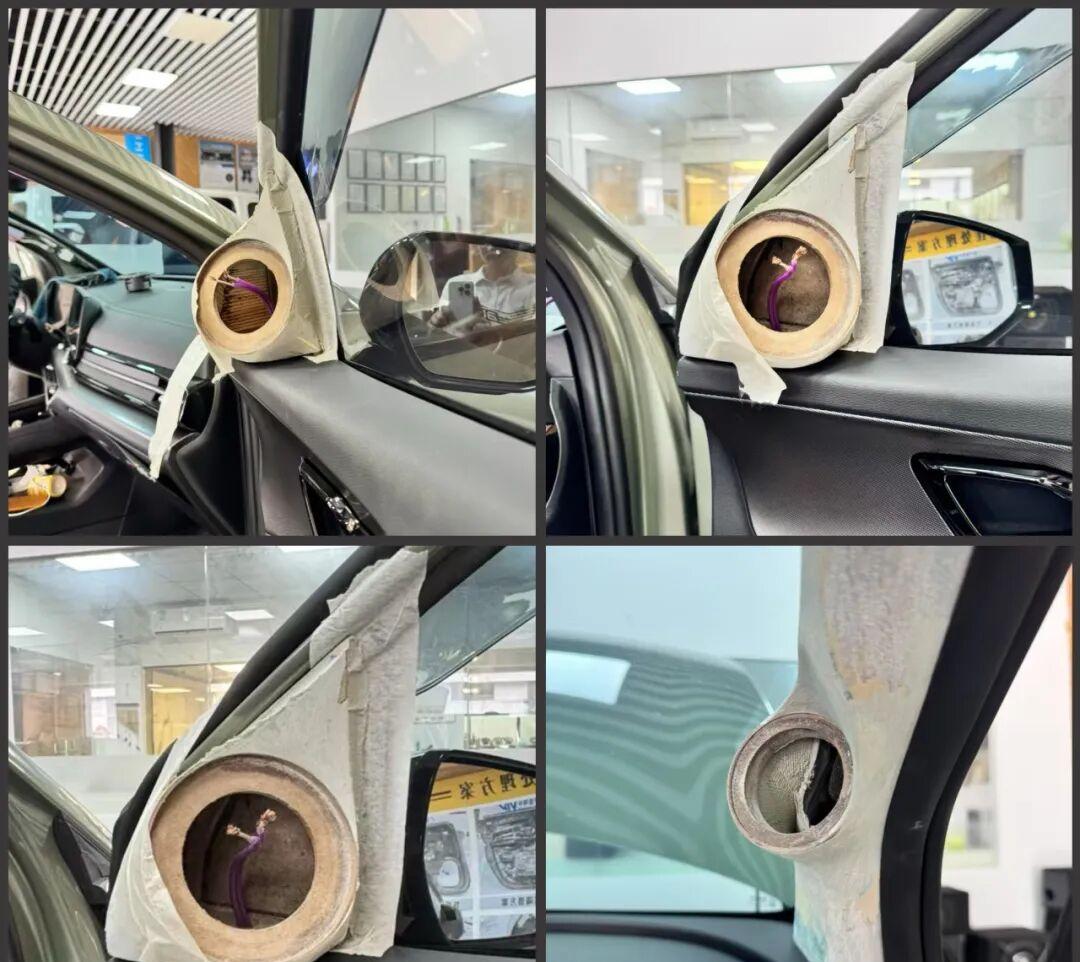

Surgical grade acoustic protocols we perform:
✔ A laser locator is used to perform three-dimensional simulation combined with the standard driver’s ear height to reshape the accurate tweeter15-degree inclination, ensuring that high-frequency energy reaches the listening position most efficiently.
✔ For the midrange unit, perform preciseReverse phase compensation debugging, to offset the interference caused by early reflected sound in the car and further improve the clarity and purity of the intermediate frequency.

The split acoustic modification of the A-pillar is by no means a simple inverted foreskin-the narrower the physical space in the car, the more it tests the modifier’s deep understanding of the proposition of “how to rebuild an infinite sound field in a limited space”.

✅ [In-depth analysis of video] How to perform “sound field magic” at the A-pillar angle:
“The core technology to achieve a grand and open sound field in a small car does not rely on the stacking of equipment, butBuilt on the deep integration of precise physical acoustic correction and electronic acoustic tuning。”



3. The end of the controversy over ultra-thin bass performance: the installation process determines 50% of its life and death



Correct a widespread misconception:
The ultra-thin bass itself is by no means a “chicken rib” product. The advantages and disadvantages of its final effect,At least 50% directly depends on the scientificity and rigor of the installation process。



Common wrong practices in the industry and their consequences:
❌ Use humble Velcro or double-sided adhesive tape for “soft fixing”. This can lead to unintended relative movement of the woofer unit with the body sheet metal during operation,Loss up to more than 60% of vibration energy, which is equivalent to “self-abandoning martial arts”, the result is that the bass is loose and weak, and there is no sense of punch.

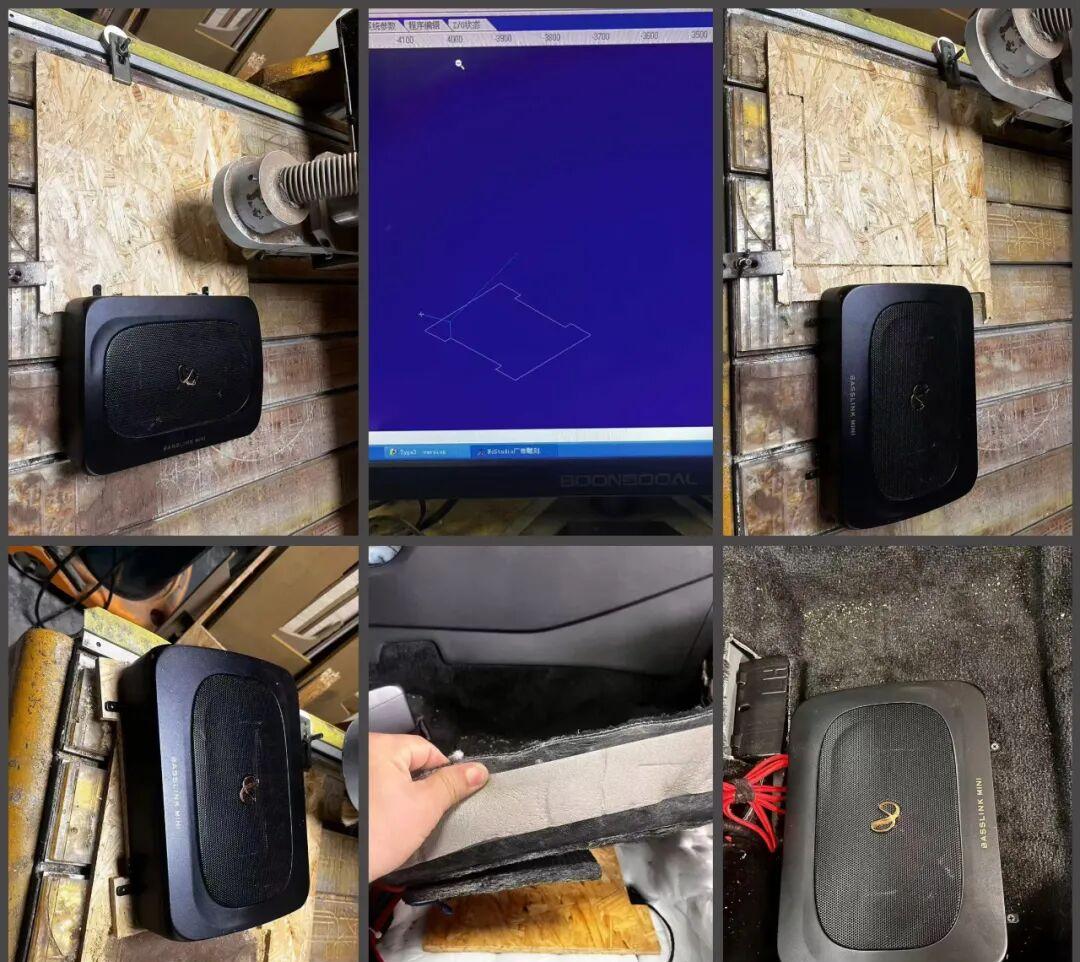

Revealing the military-grade ultra-thin bass installation standard of music broadband:
1. On the body sheet metal layer at the installation position, first lay a high-strength vibration-stopping plate, and then cover it with customizedAviation aluminum alloy reinforcement, forming a double-layer rigid substrate to prevent resonance.
2. Use the metal bracket customized by the special car to passFour-point bolts hard attach to the body。 This structure efficiently transmits the vibration energy of the bass unit to the entire vehicle body, converting it into solid sound energy, and improving the energy transmission efficiency3 times or more。

✅ [Violent Test Video] How much change can the correct installation of ultra-thin bass bring:
“The treatment of earthquake resistance and energy transfer is crucial. A properly installed ultra-thin bass, with its clean, fast and powerful performance, is enough to subvert your traditional cognition of such products.”

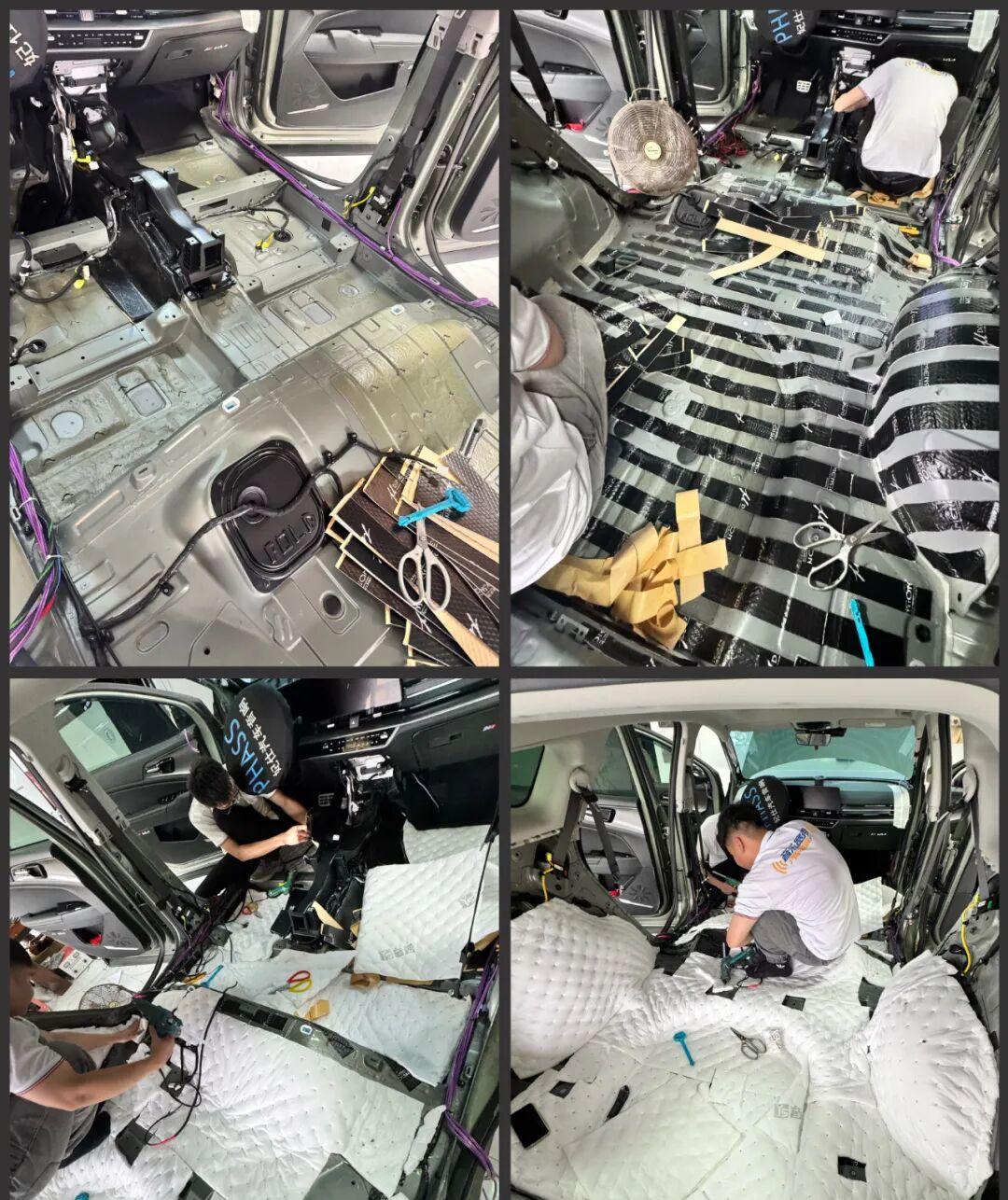

Four, “Vascular-level” deep surgery for chassis sound insulation: curbing road noise from the source



The inside of the girder of the vehicle chassis is a typical hollow cavity structure, which can easily resonate due to road excitation during driving, amplify and mix road noise, and form an annoying low-frequency “rumble” sound. The root cause lies in:Scientifically fill and process these cavities。



Targeted girder cavity noise reduction project:
▶ Use a professional cavity resonance analyzer to locate the main resonance points, usingEnvironmentally friendly foam materials and high-performance sound-absorbing cotton are layered and filled in different areas, changing its acoustic characteristics.
▶ According to the actual measurement, this treatment can reduce the main road noise peak valueAbout 7 dB, bringing significant improvement in quietness.

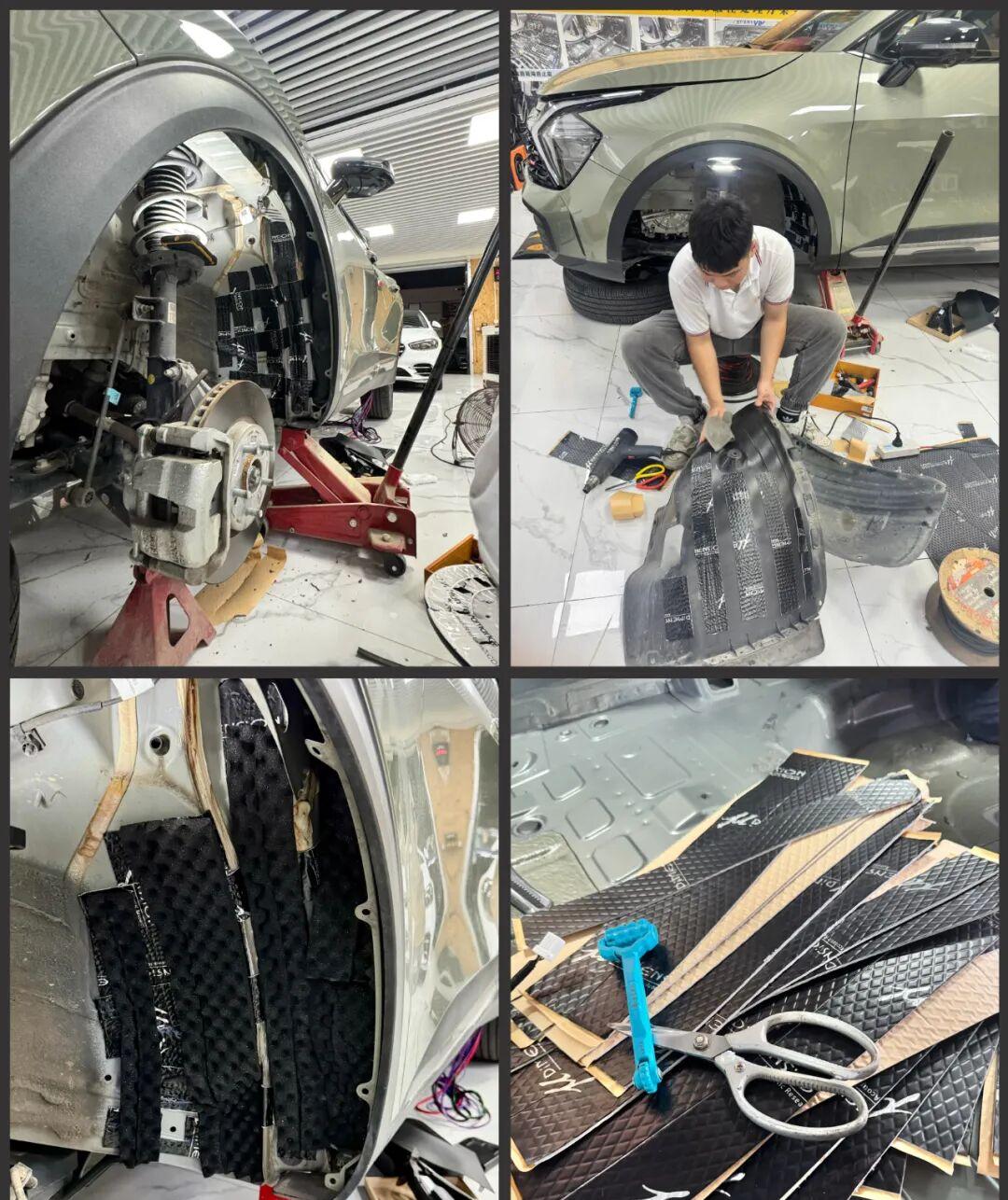

Black technology treatment of front wheel arc sound insulation:
✔ In view of the high-frequency hissing sound generated by tire rolling, special composite materials and structures are used to block and absorb it, so that this part of the most harsh tire noise almost “disappears”.



5. Devil details of wire layout: eliminate hidden dangers and ensure long-term peace and stability



Hidden safety and quality hazards left by original car modification:
❌ The horn wire roughly “flies” through the active area of the door hinge. And this isA “time bomb” that causes water leakage in the door, wire wear and short circuit, and will have problems in about 3 months.。



The original factory-level construction specifications adhered to by music broadband:

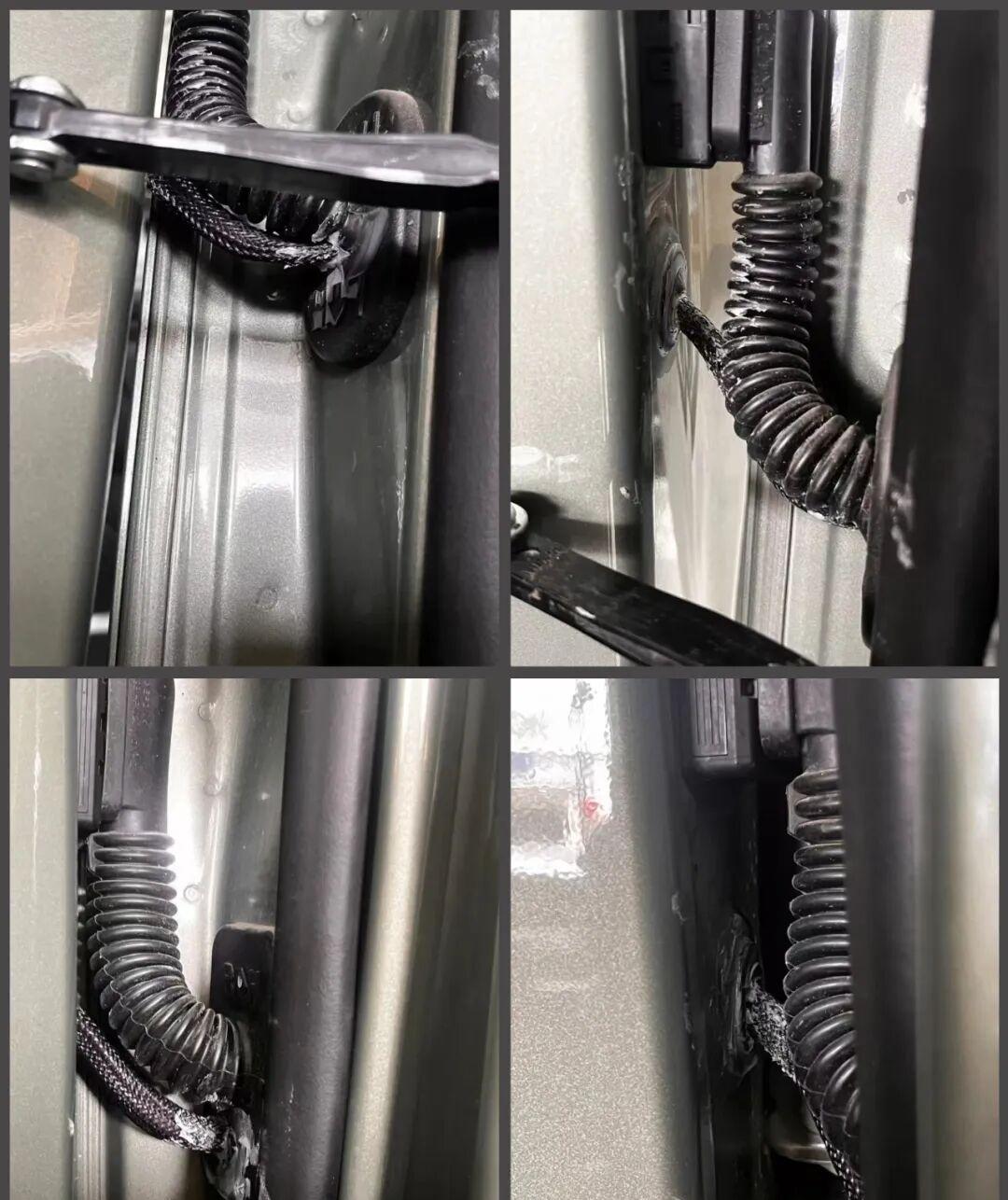

Car enthusiasts who have been following us for a long time know that we wear horn cablesStrictly follow the original wiring harness pipeline, will never randomly open holes in the door or body sheet metal to create another “shortcut”.
✔ Use the crossing channel and waterproof rubber sleeve path reserved by the original vehicle throughout the process.
✔ To adapt to thicker professional audio cables, we useLaser scanning mold opening customized special waterproof sealing ring, to ensure foolproof sealing.
(Professional tip: The abnormal noise caused by the friction between the wire and the car body during driving is one of the invisible killers that affect the purity of the sound background!)

Final remarks:“This is far from a simple equipment replacement or function installation, but a comprehensive and systematic process from the basics of physical acoustics to electronic signal processing‘Reconstruction of acoustic environment in vehicle’ project！”
