Taking data as the soul and craftsmanship as the carrier: Audi A 4 audio door panel box precision reconstruction

There is a fundamental core difference between car audio and home audio systems, that is, the acoustic cabinet environment on which speakers work. The speaker unit in the home audio system is usually installed in a special box with precise calculation and perfect structure, while the “box” of the car audio system is inherently deficient-it is only the limited cavity space with irregular shape and thin material inside the door. The difference between the two in acoustic conditions can be described as a world of difference. Therefore, for car audio enthusiasts who pursue the ultimate sound quality restoration and listening experience, tailoring a special box that meets acoustic standards for the door has become a crucial part of the upgrade process. A scientifically designed and well-made door box can bring multiple significant advantages: it can effectively prevent sound energy from leaking through door gaps and greatly reduce sound energy loss; Significantly improve the density and imaging power of sound; The details of the music can be highly restored, and the overall sound quality is more solid, full and layered.

The modification of the special box for automobile door panels is a professional project with extremely high requirements for data accuracy and craft aesthetics. It not only needs to strictly meet the physical requirements of specific speaker units for core parameters such as box volume and resonance frequency, but also must take into account the visual aesthetic that is perfectly integrated with the original car interior to achieve dual improvements in “listening” and “looking and feeling”. In this extremely challenging field of modification, we are always committed to achieving the ultimate in every detail with years of technical accumulation, rich practical experience and a highly professional team. Below, we will analyze in detail the entire process and exquisite craftsmanship of door box customization through an in-depth modification example of an Audi A 4.



The following is a complete process detail display of this in-depth customization of the Audi A 4 door box

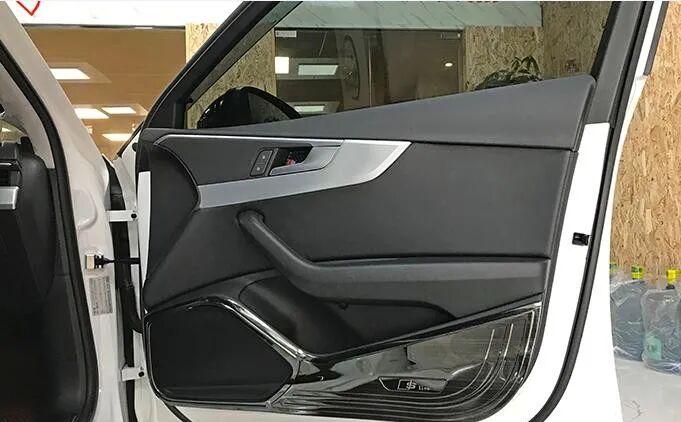

The first thing is presented is the original state of the vehicle door panel before any changes, that is, the initial appearance of the original vehicle.

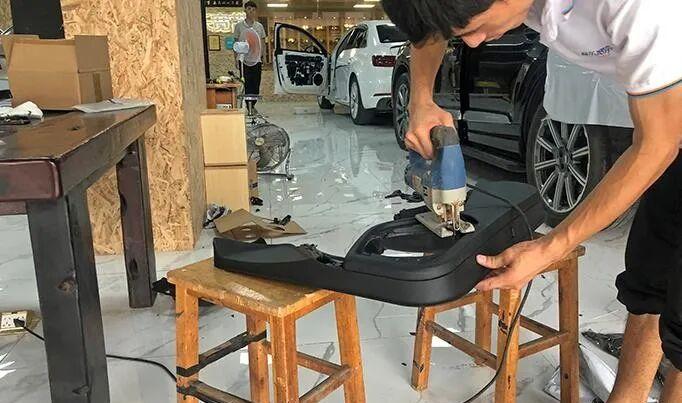

In the first step of construction, the entire door trim panel needs to be precisely disassembled and decomposed, and then according to the preset three-dimensional model of the box, the inside of the door panel is precisely cut and opened to reserve an accurate space position for the customized box.

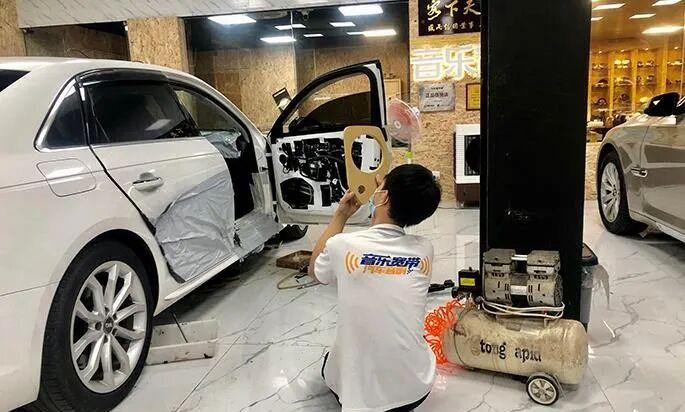

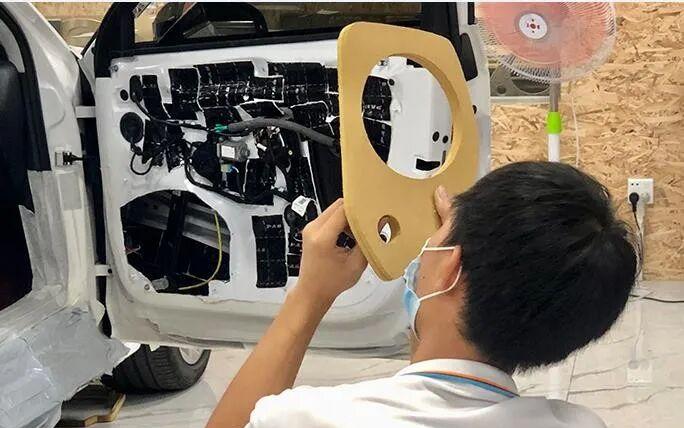

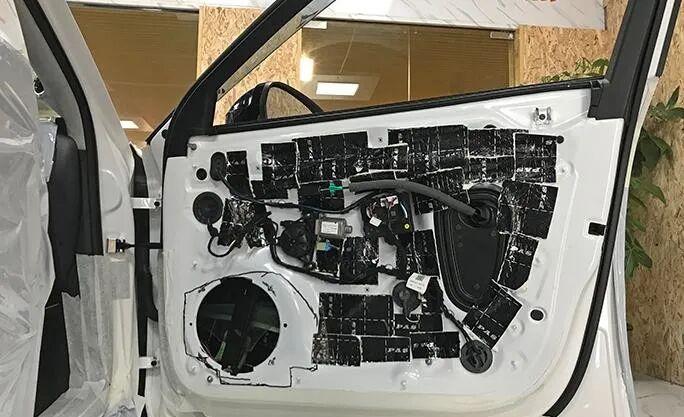

On the premise of ensuring that the structural strength, safety performance and various original functions of the door (such as anti-collision beams, glass lifting, etc.) are absolutely not affected, we make scientific local adjustments to the sheet metal on the inner side of the door. This move aims to maximize the use of limited space and strive for the ideal volume for customized cabinets, which is a key step to improve low-frequency response and sound purity.

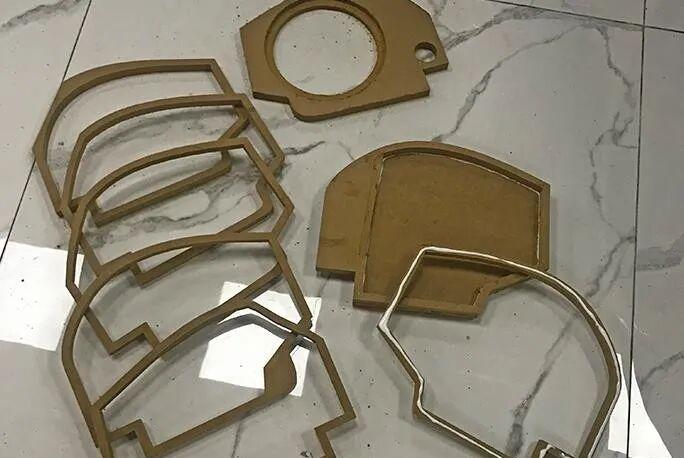

The core of the box lies in precision. We first use professional software for three-dimensional digital modeling and acoustic simulation, and then import the data into high-precision numerical control (CNC) machine tools to cut high-quality plates into pieces of box splicing parts with millimeter accuracy to ensure that the angle and dimensions of each surface are flawless.

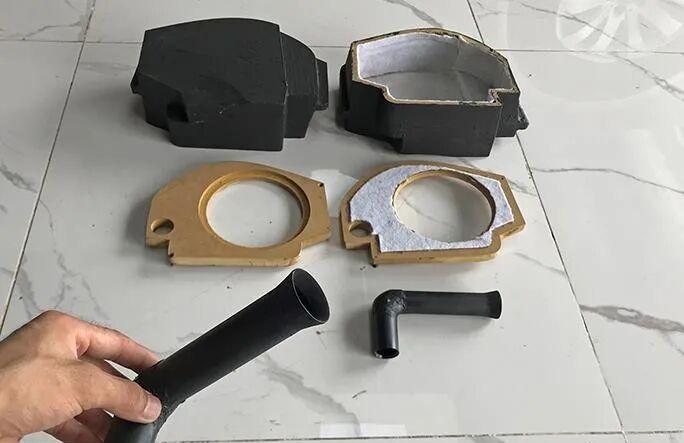

Before assembly, all wooden parts of the cabin are strictly treated with waterproof, moisture-proof and anti-corrosion coating to cope with the complex environment in the cabin. At the same time, according to the acoustic design, we carefully fabricated and installed special airflow guide tubes to optimize the air flow inside the cabinet, control the bass speed and eliminate harmful standing waves.

We firmly believe that it is impossible to achieve a truly high-quality product without the modification supported by precise data. The picture shows the process of supporting, reinforcing and optimizing the flow diversion inside the box based on acoustic principles. Every structure has been carefully considered.

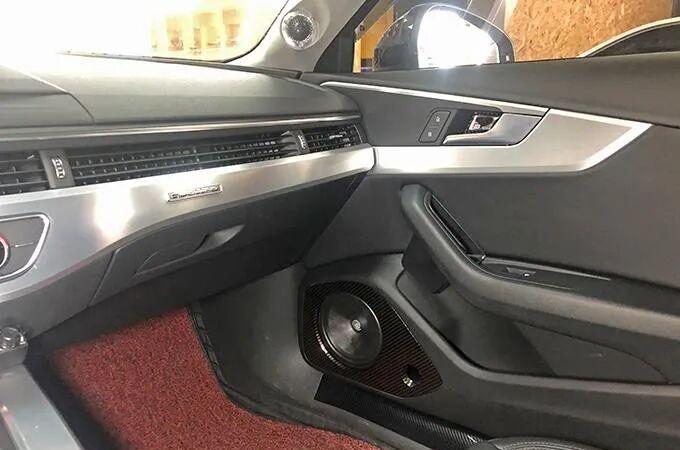

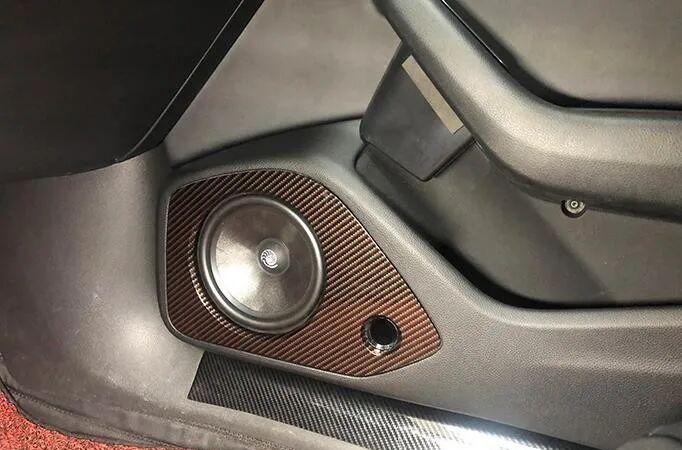

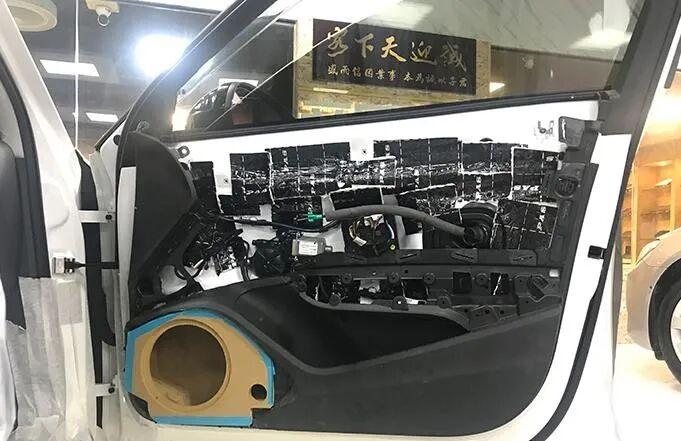

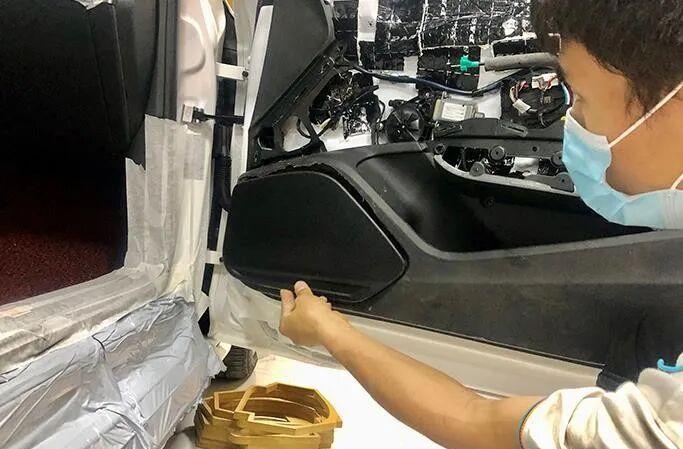

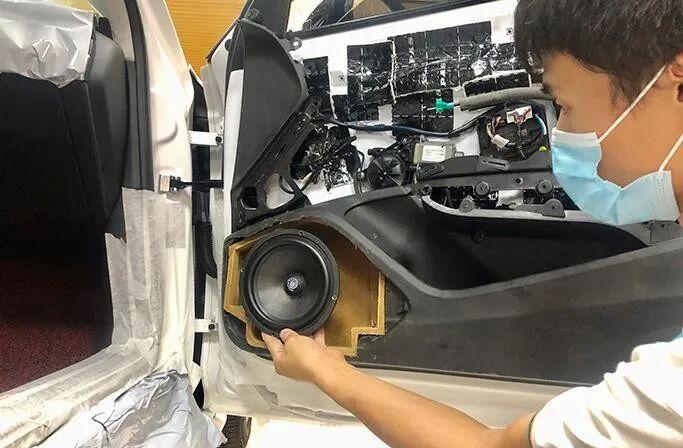

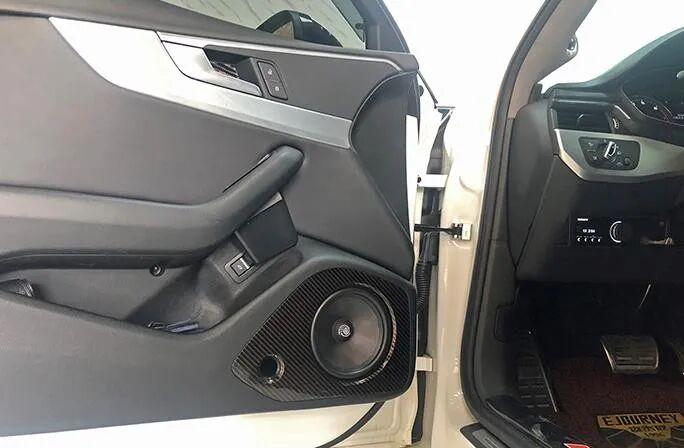

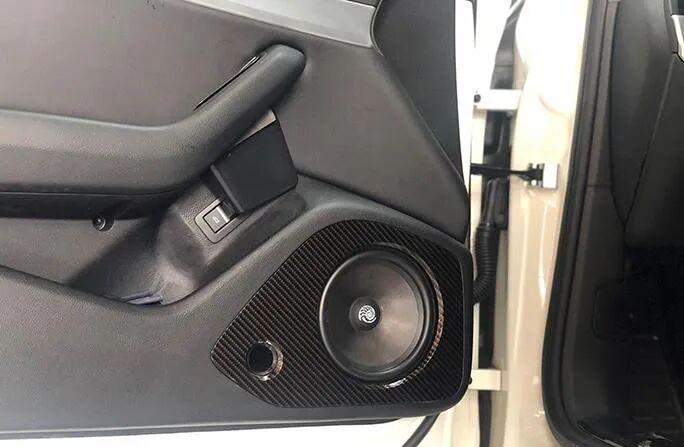

After layers of rigorous process steps, finally, the customized box is perfectly embedded in the door structure. Its combination with the original car sheet metal fits perfectly, and the internal volume accurately meets the standard, providing a solid, stable and ideal sound environment for the speaker unit. The following is the final effect display after the box installation is completed.
