The key to unlocking the mobile concert hall: BMW GT 6 audio DSP power amplifier upgrade

Everyone has their own unique hobbies, and realizing these hobbies often requires time, energy and even financial resources; The deeper you invest, the more thorough and pure the experience you get. The essence of pursuing hobbies is a journey of exploration and growth, and the process and final results are worth enjoying wholeheartedly. In the current diversified lifestyle, car audio modification is a popular hobby with a certain professional depth. For those who are new to this field, installing a high-quality DSP digital audio processor (usually integrating power amplification function) is the best choice to get started, and it is also the most ideal starting point to step into this charming “acoustic world”. Because this upgrade method has relatively little changes to the original car wiring and interior, it can significantly improve the clarity, layering and sound field positioning of the sound through advanced digital signal processing technology, and the effect is immediately improved. When choosing a DSP power amplifier, we strongly recommend giving priority to first-line brands with mature technology and excellent market reputation. Putting product quality and reliability first is responsible for your own listening experience and respect for the value of your car; On the contrary, if you simply pursue low prices and ignore core quality, you may not be able to achieve the expected improvement, or even the loss outweighs the gain.

Below, we will introduce the details and key points of the modification process in detail through the actual case of a BMW GT 6 model equipped with a ten-channel DSP power amplifier. This detailed operation record aims to provide a clear and reliable reference model for riders who are interested in trying and hope to “try their best”.

Among many car brands, the sound system modification of BMW series models is recognized as relatively convenient. This is mainly due to its regular electrical layout: most of the core modules of the sound system (such as power amplifiers, host interfaces, etc.) are concentrated in hidden spaces on both sides of the trunk. What’s more, the original car battery of BMW models is usually located in the trunk, which provides great convenience for the subsequent installation of audio equipment to get electricity, without the need to cross the cabin for long-distance wiring. This innate structural advantage seems to make BMW models have their own “easy to upgrade” genes, which is favored by modification enthusiasts.

First of all, it is the basis to ensure stable and reliable signal transmission-we insist on using professional welding technology for the input and output signal line connections of all DSP power amplifiers, rather than simple butt or snap-on connections. Welding can minimize signal loss, avoid poor contact caused by oxidation, and ensure that sound signals are transmitted in the purest way.

The aluminum shell with large-area heat dissipation fins in the picture is the audio power amplifier module of BMW’s original car. It is not a simple audio amplifier, but a highly integrated control center. In addition to driving the horn, it usually integrates the output of various on-board functional signals such as reversing radar warning sound and driving computer warning sound. Therefore, extra care needs to be taken during modification to ensure that these original car functions can still work normally after being connected to DSP.

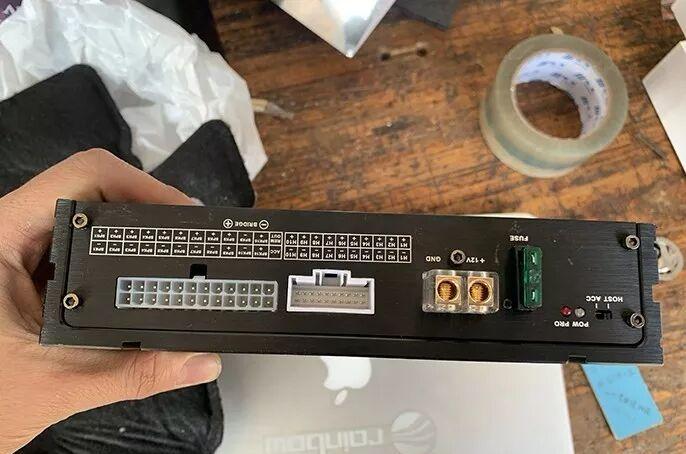

The core equipment of this upgrade is this high-performance ten-channel DSP power amplifier. It has 10 high-level input channels and 10 output channels, which can flexibly connect the complex sound signals of the original car and process each channel independently. Its built-in processor supports up to 31 tunable parametric equalizers (EQ), allowing extremely fine gain or attenuation corrections for specific frequency bands. The independent channel delay adjustment function, which is accurate to microseconds, is the soul of DSP technology. It can effectively correct the arrival time difference of sound waves caused by different installation positions of speakers, thus constructing an ideal sound field with accurate focus and distinct layers.

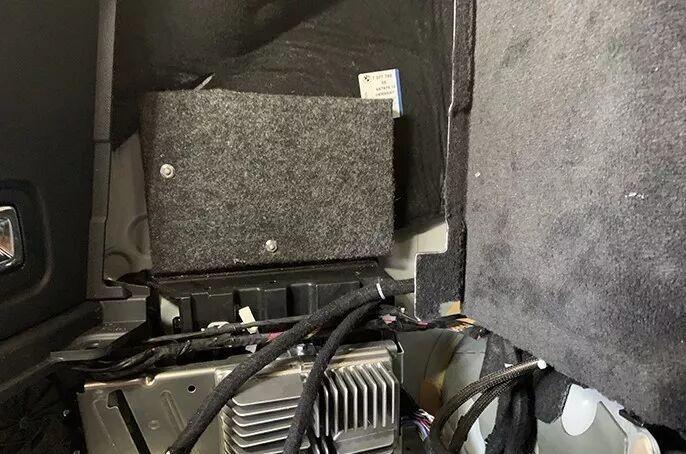

After evaluation, we selected the installation location of DSP power amplifier in the free area near the original car power amplifier module. In order to ensure the absolute stability of the equipment in the driving vibration of the vehicle, we specially cut and fixed a high-strength wooden board as the mounting substrate, and then firmly locked the DSP power amplifier on it.

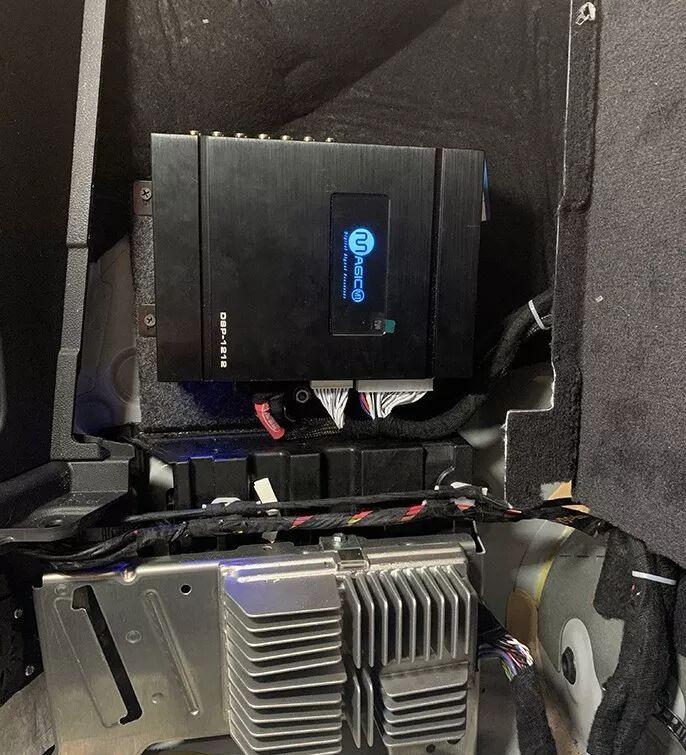

The overall effect after the installation and fixation of DSP power amplifier. The layout is neat, the wiring harness is regular, and it is convenient for future maintenance.

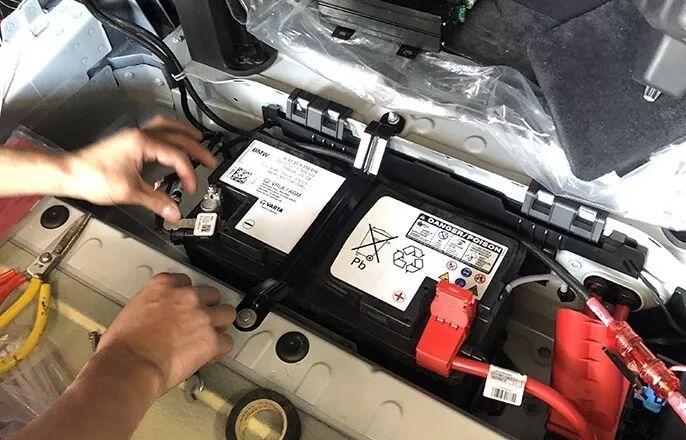

Power supply is the cornerstone of the stable operation of the system. We connected a separate power supply to the DSP power amplifier from the original car battery in the trunk.

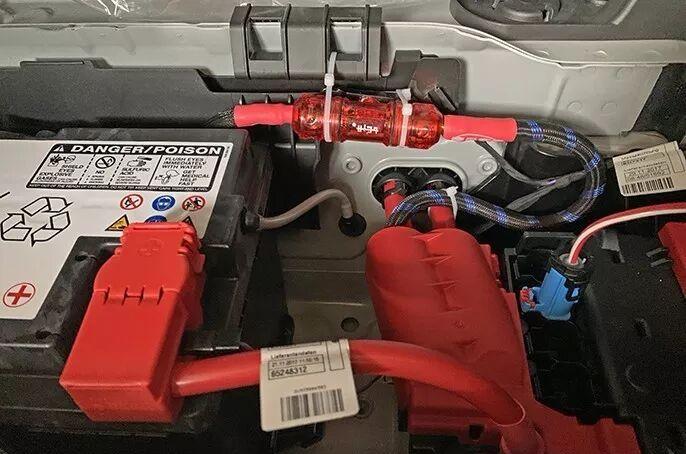

In the figure, the red cable tie is used to mark and fix it, which is the power safety holder specially installed for DSP power amplifier. This is a crucial safety device, which can quickly cut off the power supply when the circuit is abnormal, and protect the vehicle’s electrical system and audio equipment.

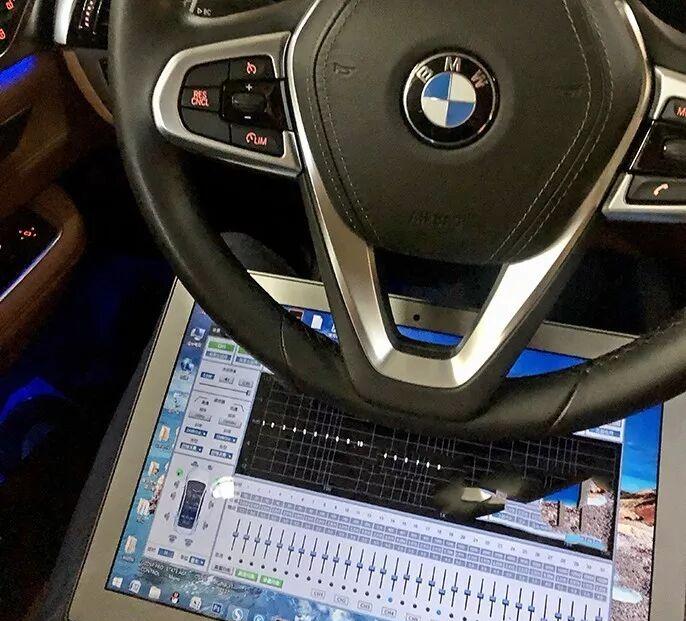

After all the hardware is installed, the whole upgrade project has entered the most technical and critical link-professional tuning. The tuning level directly determines the upper limit of the performance of the equipment. Even if you have the top-notch equipment, if you lack professional tuning experience and scientific methods to control it, the final effect will be greatly reduced, and it will not be able to show its due strength.

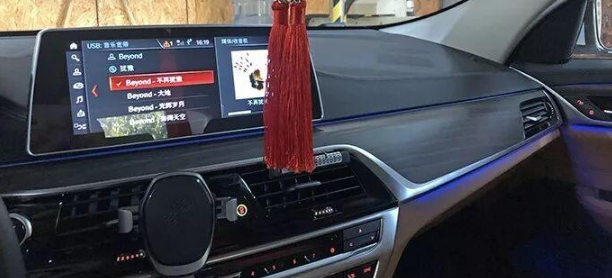

So far, the DSP power amplifier upgrade of BMW GT 6 has been successfully completed. This solution makes full use of the high-quality horn unit of the original car as the final sound carrier, and does not require large-scale disassembly and modification of the door interior panels, which indeed achieves a convenient and efficient upgrade. Most importantly, after the audio signal is accurately reshaped by DSP, the overall sound effect is improved significantly and directly, bringing a refreshing listening enjoyment to car owners.
