Honda Accord two-way system regeneration: awaken the sound field with pointing calibration, reshape practicality with spatial integration, and release potential with system adjustment

In the communication with many car owners, a frequently mentioned question is: “Have you ever modified this model of mine before?” Our answer is always frank and confident: “No matter what brand and model, as long as the vehicle is entrusted to us, we have the ability to build a set of excellent sound system for it and make it present the perfect final effect.” The in-depth rectification case of Honda’s latest Accord shared today is a strong proof of this commitment. The owner has previously done audio upgrades elsewhere, but the effect is far from as expected. After months of attention and communication, based on his trust in our technical concepts and practical capabilities, he finally decided to hand over his car to us for a comprehensive and thorough systematic reorganization. This case also once again proves an important acoustic point:The overall performance of a well-designed, accurately installed and well-tuned two-way audio system is completely comparable to or even surpass many poorly installed and debugged three-way systems.

Core rectification dimension 1: Reconstruction of trunk equipment layout-adopting overhead hoisting solution to release 100% practical space

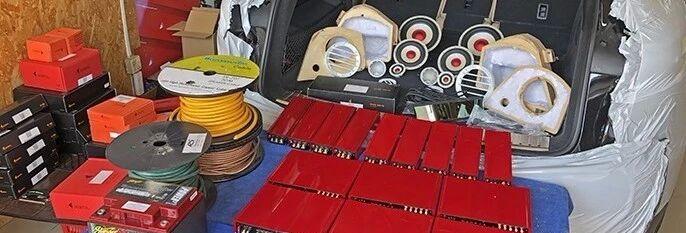

When we took over the vehicle, we found that the spare tire slot space on the lower floor of the trunk was occupied by the stack of first-tier brand equipment such as Helix power amplifier, Alpine DSP processor and A 09 player. Although the quality of the equipment used itself is good, this installation method completely sacrifices the emergency spare tire storage function and lower storage space of the vehicle, which seriously affects the convenience of daily use. It can be described as “sound quality but practicality”.

► Systematic rectification strategy:

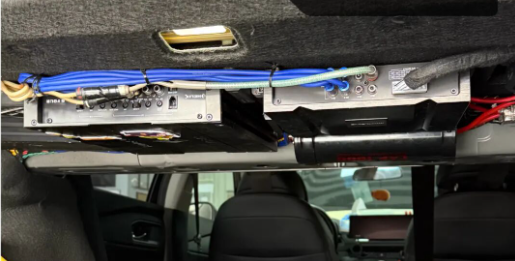

We have abandoned the traditional tile stacking model and innovatively adopted“Overhead Integrated Hoisting”SCHEME. Re-plan all core electronic equipment (power amplifier, DSP, player) and install them in the idle space on the top of the trunk.

★ Space Value Maximization:The complete storage layer of the lower layer is completely released, the spare tire can be stored in situ, and the original cargo function and emergency response capability of the vehicle are completely restored.

★ Visual aesthetics and craft embodiment:All wires are neatly stored and concealed through customized wiring harnesses, and the equipment is arranged in an orderly manner, presenting a refreshing and professional visual effect of advanced modification.

★ System reliability improvement:Suspended installation creates a better air circulation environment for the equipment, effectively improves heat dissipation conditions, and is of great benefit to prolonging the service life of precision electronic equipment and maintaining stable working conditions.

Core rectification dimension 2: Acoustic remodeling of A-pillar tweeter unit-precise directivity is the shaper of the soul of the sound field

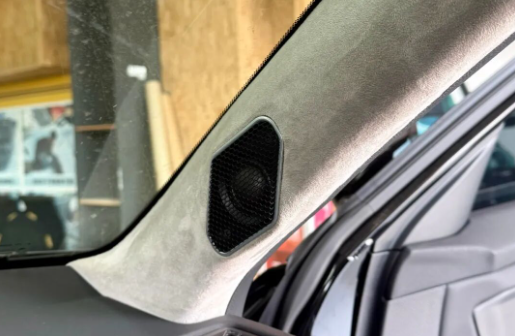

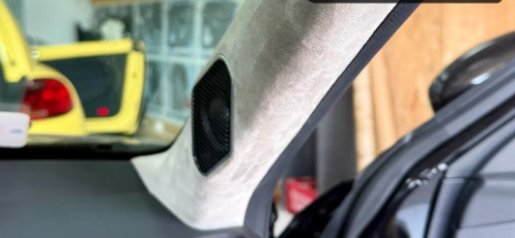

The tweeter unit of the original car is simply installed in situ, and its sound axis points roughly to the center of the center console. This extensive installation method leads to a serious problem:There is little access to direct, ample high-frequency energy from the driver’s seat, the whole sound field sounds flat and narrow, the positioning of musical instruments and vocals is vague, lacking three-dimensional sense and layering.

► Analysis of the acoustic principles behind the problem:

High-frequency sound waves are short in wavelength and have extremely strongDirectivity, whose propagation is approximately a straight line. In a two-way system, the tweeter is not only responsible for the extension of extremely high frequencies and air feeling, but alsoIt directly determines the clarity of the middle and high frequency bands, the “sweetness” of the human voice, the openness of the sound field and the separation of the left and right channels。 Even if there is only a slight deviation in its installation angle, it will have a decisive impact on the final hearing experience.

► Precise rectification plan based on acoustic principles:

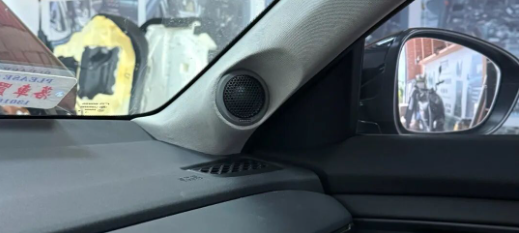

★ A-pillar inverted mold and pointing precision calibration:

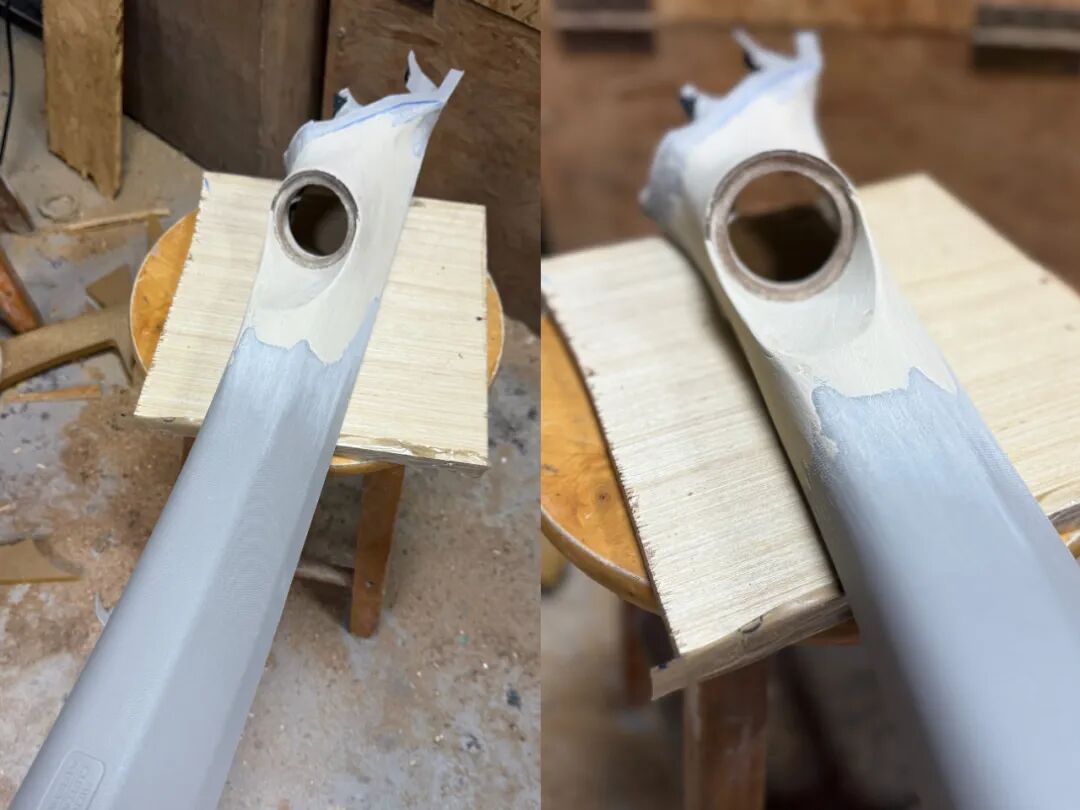

We abandoned the original position and recreated the ideal mounting base for the tweeter through the professional A-pillar inversion process. The calibration principles are as follows:
• Left tweeter: Accurately align the driver’s left ear and left cheek area to ensure that the driver gets the most direct and abundant high-frequency information.
• Right tweeter: While taking into account the co-pilot listening experience, its axis also partially covers the right side of the driver to construct a complete right-side sound image.

★ Acoustic transformation brought about by rectification:
• Creation of stereo surround sound field:The sound blows from the front, forming a three-dimensional sound field with width, depth and height, and the immersion is greatly enhanced.
• Accurate establishment of musical instrument and vocal positioning:The singer’s mouth shape is clearly discernible, and the position of the instrument in the sound field is stable and clear, with distinct layers and excellent separation.

★ Our technical philosophy:“In car audio modification, the directivity of speakers is the first element to shape the soul of the sound field. If you miss a tiny mile, you will be a thousand miles away in listening.”

Core rectification dimension 3: subwoofer system upgrade-customized replenishment cabinet achieves double victory in sound quality and space

The traditional bass box used in the modification of the original car is huge and placed in the trunk, which seriously occupies the precious luggage loading space and brings great inconvenience to the daily travel of the car owner.

► Innovative solutions:

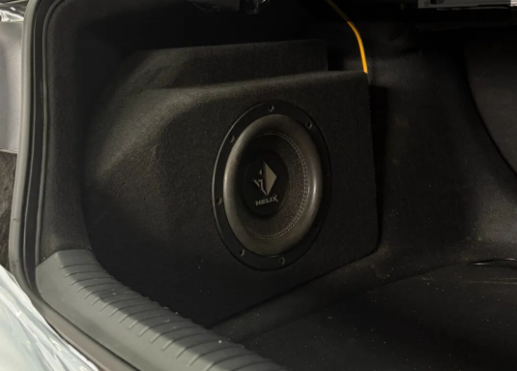

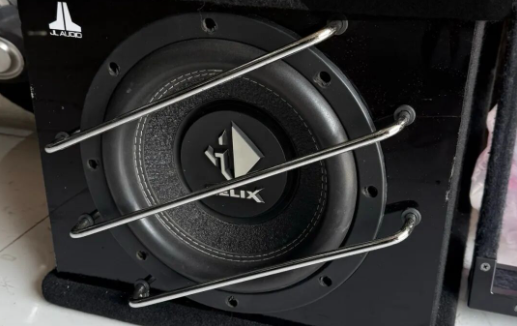

We have tailored one for car ownersHelix subwoofer special complementary box。 The box has been precisely calculated and designed, and can be tightly embedded in the originally idle groove or irregular space on the left (or right) side of the trunk.

Comparison of core advantages of traditional boxes vs. customized replenishment boxes:

Comparison Item/Box Type	Traditional independent box	Customized replenishment box
Space occupancy	Significantly occupies regular space in the trunk and affects storage	“Zero” space encroachment, perfectly utilizes the idle recess of the original car, and the storage function is completely retained
Low frequency sound quality	It is easy to cause low-frequency turbidity, divergence and “roaring feeling” due to improper box volume and placement.	The box volume customized based on the vehicle model space is more accurate, low frequencySolid, full and resilient, can better integrate into the frontcourt sound field
Visual aesthetics	The appearance is abrupt and incompatible with the interior style	Customized for special cars, the appearance is the same as the original car interior outlineSeamless fit, just like the original factory upgrade, with a high degree of visual integration
Installation stability	It may shake as the vehicle drives, causing abnormal noise	By internal support and external claddingSecurely fixedTo prevent any noise during driving

In recent years, customized complementary bass cabinets have become more and more favored by smart car owners. This is not a denial of the traditional cabinet, but a rational return and respect for the daily practicality of the vehicle while pursuing excellent sound quality-you can enjoy the surging and shocking low frequencies without having to worry about a pile of luggage when traveling.

Core rectification dimension 4: Refined tuning of the entire system-releasing the ultimate potential of the two-way architecture

The completion of hardware installation only means that the project is halfway through. Through professional DSP tuning equipment and software, we have performed meticulous electronic adjustment of the entire system:

• Frequency division point and slope optimization:Ensure that the frequency connection between treble and mid-bass units is smooth and natural, without abrupt faults or overlaps, so that the timbre of human voice and instrument is complete and unified.

• Delay (time alignment) precision calibration:According to the actual distance from each speaker to the “emperor’s position” of the driver’s seat, fine-tune the delay parameters of each channel, so that all sounds can reach the human ear synchronously, achieve accurate sound field imaging, and allow the singer to “stand” in the center of the instrument panel to sing.

• Parameter equalization (PEQ) detailed modification:Compensate and correct the unique acoustic environment (formant peak, standing wave) in the car, and control the frequency crossover slope and volume sense of subwoofer, so that it can provide a solid atmosphere foundation without covering up the details of the intermediate frequency.

► The final auditory feast presented:

• Vocal performance:Clear, moist and emotional, the tooth sound is clear but soft and never harsh.

• Sound field performance:Open and wrapped, the instrument positioning is stable and clear, and the stage feeling is strong.

• Low frequency performance:The dive is deep and elastic, with a distinct sense of rhythm, and it is integrated with the mid and high frequencies to create just the right musical atmosphere.

The transformation journey of this Honda Accord from “dissatisfied” to “amazing” has once again profoundly confirmed the golden rule of the car audio modification industry:“Five points for the success or failure of the system depend on the quality of the equipment itself, and five points depend on the rigor of the installation process and the profound skill of tuning technology.”

We always firmly believe and practice: No matter whether your car is a classic style or the latest model, as long as you have the yearning and pursuit of beautiful sound in your heart, we will turn this pursuit into reality with the most professional technology, the most extreme ingenuity and the most responsible attitude, so that every journey of your journey will be accompanied by beautiful and moving melodies.
