Your car stereo always feels like it smells bad? Perhaps the problem lies in the “golden intermediate frequency” that carries the soul of music.

When many car owners find that the performance of the original car audio system is not satisfactory, the most common intuitive reaction is that “the low-frequency impact force is insufficient” or “the high-frequency extension is not bright and transparent enough”. As a result, they often choose to invest money to install an independent subwoofer or replace a pair of tweeters that claim to be more “transparent”. However, the results of this local strengthening strategy of treating headaches and feet are often disappointing: the low frequency becomes turbid and the head blows, and long-term listening brings oppression and discomfort; The high frequency is sharp and harsh, lacking delicacy. Instead of improving the overall listening experience, it becomes more noisy and intolerable, completely deviating from the original intention of enjoying music.

In fact, the crux of the problem is probably hidden in the frequency band that you have never paid special attention to, but it can be called the soul and cornerstone of the entire sound system-Mid-Range。 It is like the string part of a symphony orchestra. Although it is not as shocking as a timpani or as loud as a piccolo, it is the core of carrying melody and expressing emotions.

1. Definition of intermediate frequency: it is a well-deserved “protagonist” on the sound stage.

For ease of understanding, we can roughly divide audible sounds into three main areas, each of which performs its own duties and together constitutes a complete listening sense:

Low frequency (Bass): About 20 Hz-250 Hz. This is the “foundation” and “atmosphere group” of sound, which is responsible for creating the heaviness, impact and perceived vibration of the body of music, such as the beating of the drum, the root sound of the bass, and the explosion sound effects in movies. It sets the tone, but excessive or out of control will usurp the host.

High Frequency (Treble): About 2 kHz-20 kHz. This is the “luster” and “detail group” of sound, which is responsible for presenting the airy feeling of music, spatial overtones and extremely subtle sounds, such as the rustling of cymbals, the high position of violin, and the singer’s tooth sound. It adds sparkle, but if it stands out too much, it will appear harsh and thin.

Mid-Range: About 250 Hz-2 kHz. This is what really carries the message and emotion of music“Protagonist Group”。 Most of the most important sound contents are concentrated here, which is the key to determine whether a set of stereos is “pleasant” and “listenable”.

IF, what exactly does it carry?

• All vocals: whether it’s the singing of a pop singer, the broadcast of a news anchor, or the conversation of the occupants in the car.

• The core range and main melody of most instruments: the midrange of the piano, the plucking of the guitar, the main timbre of the saxophone, and the mid-frequency resonance of the violin.

• Daily prompt tones: voice commands for navigation, system prompt tones.

• The “texture” and “warmth” of the sound: It determines whether the sound is full and moist or dry and cold, whether it is real and natural or strong in electronic flavor.

A vivid metaphor:An excellent car stereo set is like a sumptuous banquet. The low frequency is solid rice (providing satiety and energy base), the high frequency is flavor-enhancing peppers and spices (adding flavor and layers), andThe intermediate frequency is the main course at the banquet-whether it is the mellow braised pork or the fresh and sweet steamed fish。 If the main course (medium frequency) is tasteless or poorly cooked, even if the rice is full and the peppers are strong, the meal is doomed to be disappointing and can’t bring real satisfaction.

Second, why is intermediate frequency crucial in car audio environment?

1. Transmission channel of core information:During driving, clearly receiving navigation instructions, understanding the meaning of lyrics, and listening to the phone contents mainly depend on the accurate restoration of intermediate frequency. If the mid-frequency cloudy hollows (i.e., “mid-frequency collapse”), these critical messages become blurred, forcing you to turn up the volume and instead exacerbating auditory fatigue.

2. Determine the comfort of long-term listening (listening durability):Excessive and out-of-control low frequencies (bombing heads) and sharp and bright high frequencies (harsh ears) can easily lead to auditory burnout. On the contrary,Full, solid, clearly-lined mid-ranges sound most natural and relaxing, able to accompany you through a long journey without feeling irritable, which is one of the essential differences between “high-fidelity” and “entertainment” sounds.

3. The key to combating the complex acoustic environment in the car:The energy of background noise such as road noise, tire noise, and wind noise generated when the vehicle is driving is mainly distributed in the medium and low frequency areas, which will seriously cover up and interfere with the medium frequency details in the music (especially the clarity of human voices and the texture of musical instruments). An excellent car audio system must strive to make the mid-range “stand out” through speaker performance, installation location and electronic tuning, ensuring that the most important musical information is not overwhelmed.

3. How to quickly diagnose the intermediate frequency performance of your car audio?

The next audition, please forget the shocking low frequency for a while, find a song that you are familiar with, has a relatively simple arrangement, and is mainly vocal (such as Tsai Chin’s Ferry, Faye Wong’s Sky), listen attentively and ask yourself:

○ The singer’s voice is clear, three-dimensional and rich in texture, as if singing in front of him; Or does it feel stuffy, flat, like through a layer of gauze or coming from a jar?

○ Whether each word of the lyrics can be easily distinguished, and it is distinct from the accompanying instrument; Or are the vocals and musical instruments in a mess, and it takes a lot of effort to “guess”?

○ The overall sound sounds warm, full, and pleasant; Or does it appear thin, dry, sharp, or even cause ear discomfort?

○ If your feelings are more inclined to the latter, then the core shortcoming of your car’s audio system is most likely due to insufficient performance or distortion in the mid-frequency band.

4. Systematic solutions: from zero cost to in-depth customization, comprehensively improve mid-frequency performance

There is no need to be anxious after a problem has been diagnosed. Improving mid-frequency performance has a complete methodology from simple to professional, from low-cost to high-end investment. You can choose the most suitable upgrade path according to your needs and budget.

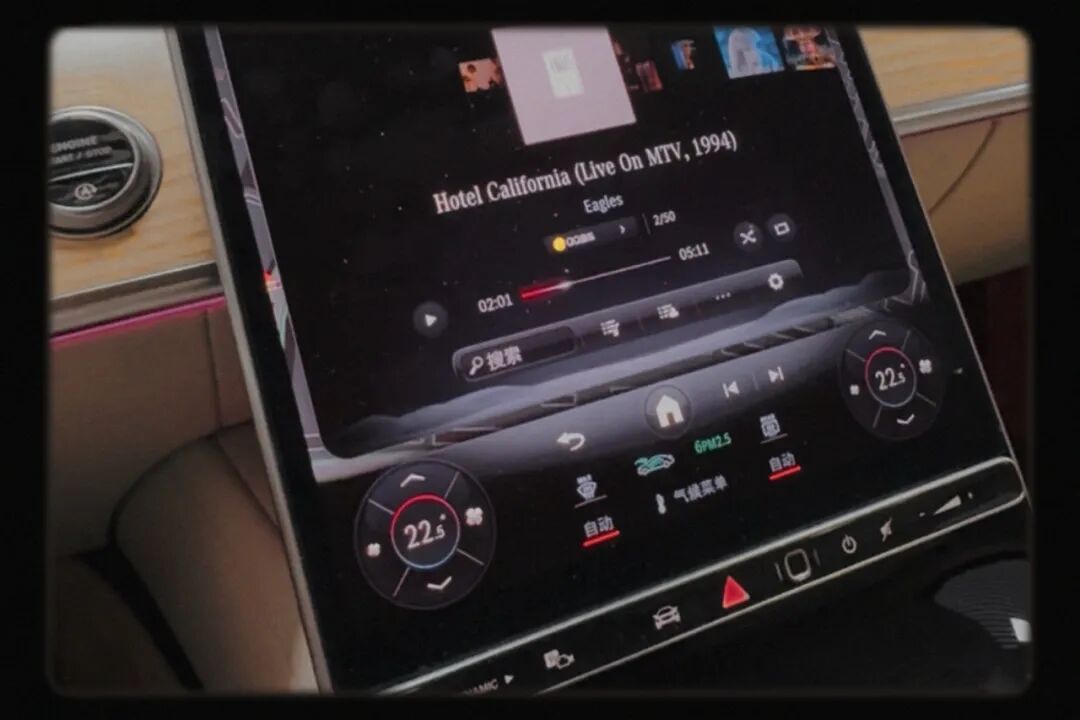

Option 1: Zero-cost wisdom-skillfully use the original car audio equalizer (EQ)

Most original car owners have built-in audio setting options, and through scientific adjustment, the effect is immediate.

Operation Guide:

1. Positioning settings:In the vehicle system, find “Sound Settings”, “Sound Effects” or “Equalizer (EQ)”.

2. Select the preset mode:Select directly modes such as Vocal, Jazz, or Speech, and these presets are usually targeted to optimize mid-frequency clarity.

3. Manual fine adjustment (recommended):If EQ supports multi-stage manual adjustment, you will see several sliders representing different frequency points.The core idea is to moderately increase the mid-frequency band (focusing on frequency points around 500 Hz to 2 kHz)While slightly attenuating excessive low frequencies (such as below 80 Hz) and potentially harsh high frequencies (such as above 8 kHz).The target curve is roughly in a soothing “smile” or “concave” shape, i.e. slightly higher in the middle (medium frequency) and slightly lower at both ends (low and high frequencies).Please fine-tune repeatedly with the song you are familiar with until the vocals become clear, mellow and prominently positioned.

Option 2: Basic hardware upgrade-replace high-quality speakers (the most cost-effective)

Cheap speaker units such as paper diaphragms used by the original car for cost considerations are often the chief culprit of “mid-frequency turbidity”. Upgrading speakers is the most direct and effective single step to improve sound quality.

• Upgrade goals:Focus on replacing the front doorMidwoofer。 In most original car two-way systems, this unit undertakes the important task of intermediate frequency and low frequency, and is the absolute main force of intermediate frequency performance.

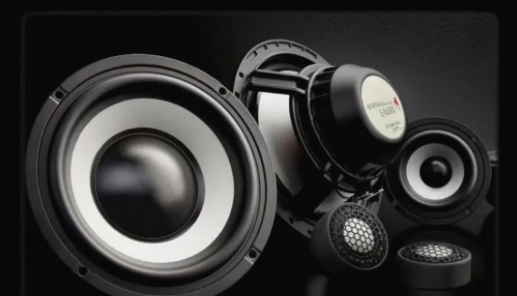

• Purchasing suggestions:Choose brands with good market reputation and outstanding mid-frequency performanceTwo-way set speaker。 The treble and mid-bass units in the package have been carefully matched by the manufacturer to ensure smooth frequency band connection, and the mid-frequency is usually fuller and more balanced. Even if only the speakers are replaced and driven by the original main engine, the sound quality improvement is extremely obvious.

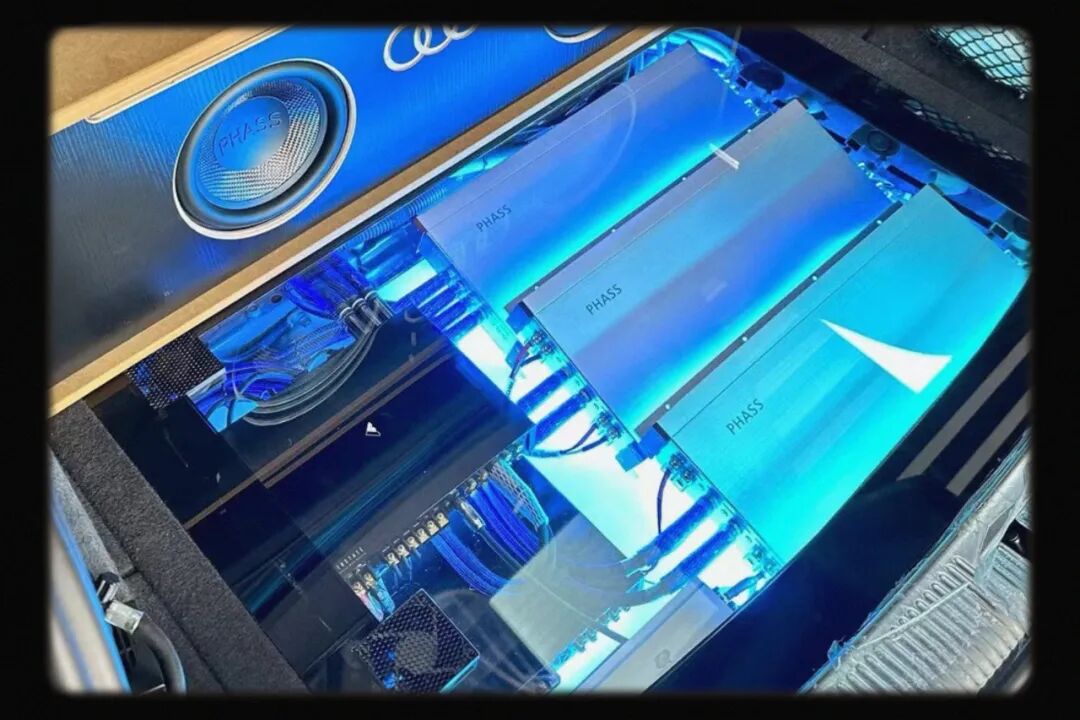

Scheme 3: High-level system upgrade-installation of DSP digital audio processor (a qualitative leap in effect)

This is one of the “ultimate weapons” to solve the acoustic problems of car audio systems, which can optimize the intermediate frequency and even the overall sound field from the root.

• Equipment principle:DSP power amplifier integrates multi-channel power amplification and high-precision digital audio processing functions.

• Core strengths:

► Abundant driving force:It provides pure power far superior to that of the original main engine, making the speakers (especially the mid-bass unit) full of dynamics, and the mid-frequency is solid and powerful, thus getting rid of the “weak” state.

► Surgical adjustment:Professional technicians can use computer software toEach channel performs independent precise adjustment of more than 31 segments of EQ equalization, phase, and delay (time alignment)。 Not only can accurately compensate the absence or peak and valley of the intermediate frequency, but also can correct the distortion of the sound field caused by the asymmetric horn position in the vehicle,Achieve the “emperor’s position” listening feeling-let the singer “stand” in the center of the instrument panel, and the positioning of the instrument is clear and distinguishable, completely solve the problem of sound “coming from the soles of the feet”.

► Applicable population:Car owners who have a high pursuit of sound quality and have replaced their speakers but hope that the potential of the system will be fully released.

Option 4: Professional architecture upgrade-build an active three-way system (add an independent midrange unit)

• System architecture:In the high-end modification scheme, the “three-way” design is adopted, that is,The treble, midrange and woofer are separated independently, each unit is driven by an independent channel of DSP power amplifier (active frequency division).

• Core values:Add oneSpecialized speaker unit responsible for medium frequency (usually 200 Hz-4 kHz)。 Let the vocals and core instruments have exclusive and optimized sound sources, which greatly reduces the burden of the mid-bass unit responsible for both mid-frequency and low-frequency. The result is the ultimate in purity, density, detail and dynamics of the mid-frequency, and the layering, separation and realism of the sound are unparalleled.

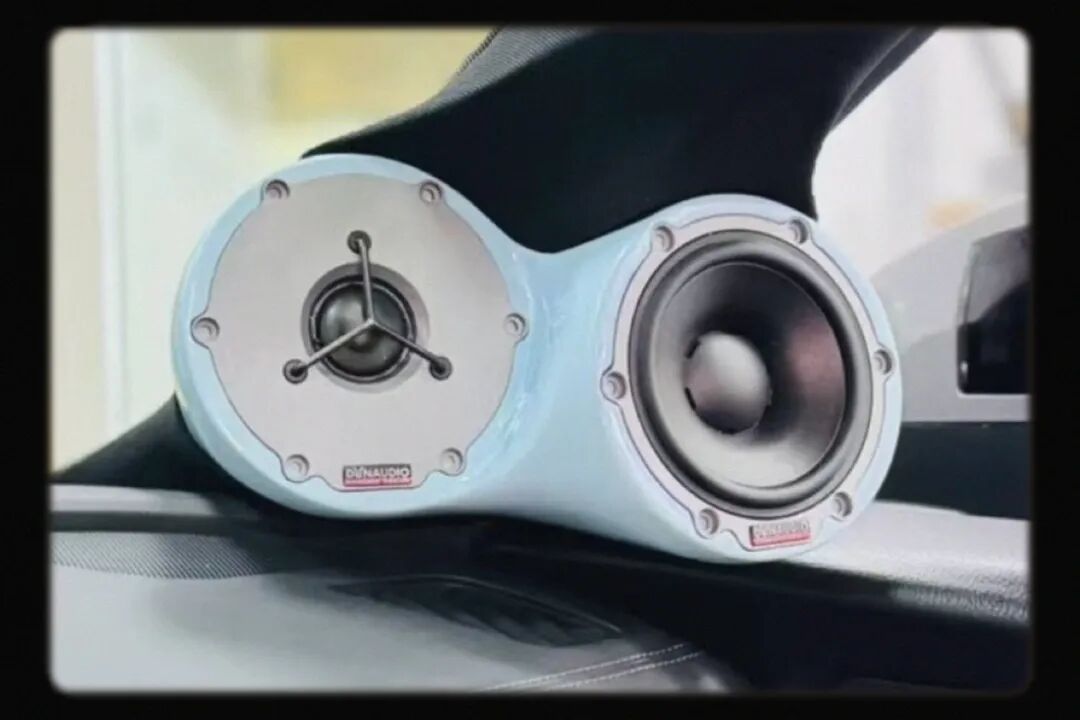

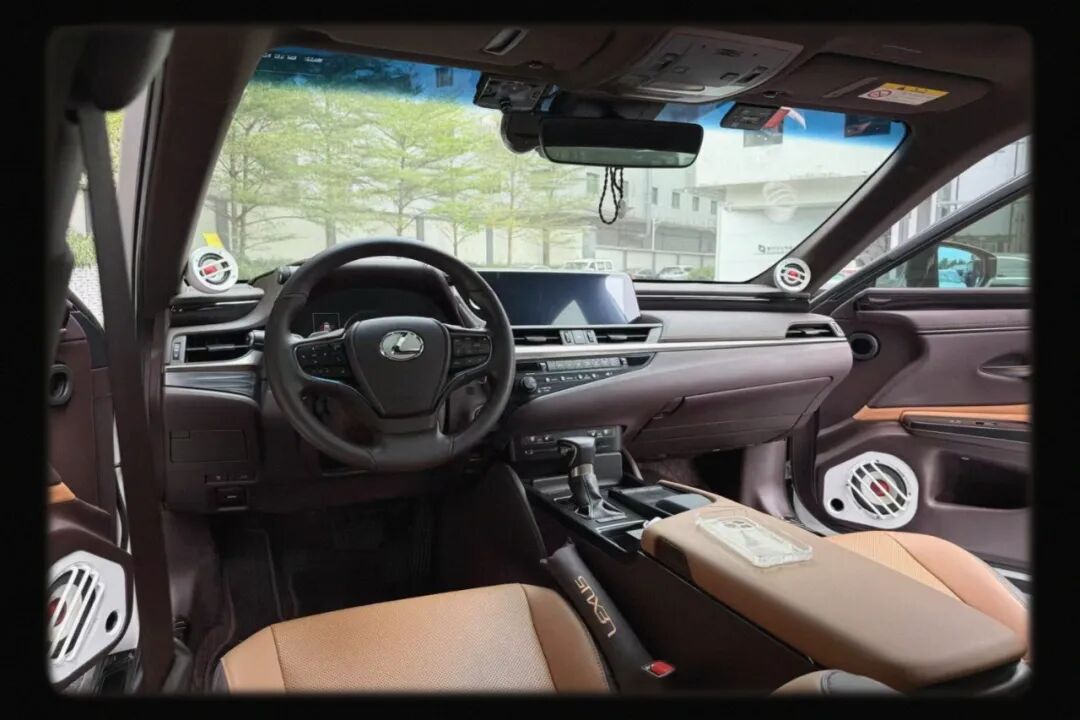

• Applicable population and requirements:The ultimate solution for audiophiles. Usually, it is necessary to perform inverted mold production on the A-pillar or instrument panel to accurately locate the midrange and tweeter units, which places high requirements on installation process, debugging technology and budget.

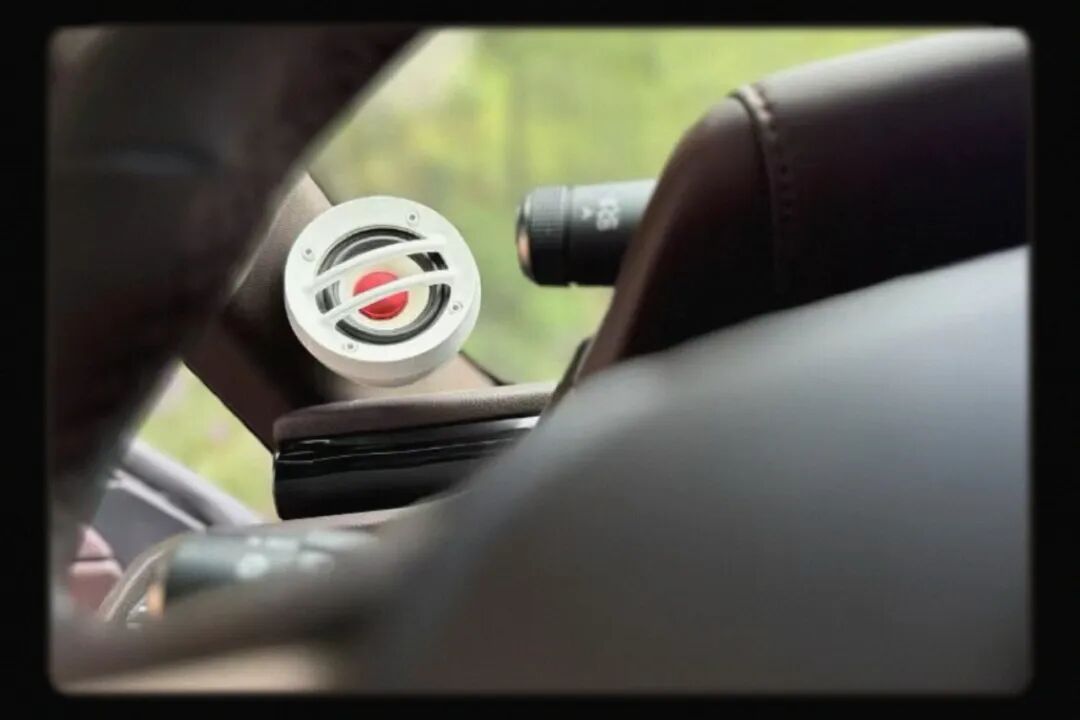

Option 5: Application of innovative ideas-replacing the original car tweeter with a high-quality full-frequency unit (cost-effective sound field focusing solution)

This is a cost-effective “secret skill” that has been circulated among senior players and has been verified in practice: on the basis of retaining the original car or upgraded mid-woofer,Use a high-quality “full-frequency speaker” to directly replace the “tweeter” in the original parking space.。

• Underlying logic:

Break the mindset that “treble phonemes can only be treble”. This solution transforms the high mounting point of the instrument panel or A-pillar into aEfficient “medium and high frequency anchor points”。

• Core purpose:The main purpose is not simply to expand extremely high frequencies, but toDramatically enhances the clarity, thickness, and vocal imagery of mid and high frequencies。 Let the singer’s voice be clearly emitted from a higher position closer to natural listening habits (above the instrument panel), forming a better connection and coordination with the middle and bass of the door panel, thus greatly enhancing the three-dimensional and realistic sense of the sound.

• Feasibility basis:Many excellent full-range speakers (such as some 2-3-inch units) have the fullness, naturalness and charm of the timbre in the frequency band far exceeding that of ordinary single tweeters. Using them to cover the transition area from medium and high frequencies to high frequencies can often achieve excellent vocal performance and sound field improvement at a relatively low cost.

Regardless of which upgrade path you choose, you must keep in mind:Professional installation technology and accurate system debugging are half the battle, if not more.High-quality equipment may be counterproductive when poorly installed and adjusted. When communicating with a tuning technician in the future, you can express more professionally: “I want to improve the clarity and prominence of the vocals, make the mid-frequencies fuller and more natural, and improve the overall listening comfort.” This can help us understand and realize your needs more accurately.

The soul of excellent car audio lies in balanced and emotional mid-frequency performance.It is not to show off skills or create sensory stimulation, but to faithfully restore the emotions and stories in music and serve your listening enjoyment in every trip. Invest in a sound system with excellent mid-range performance, and the rewards will be reflected in the pleasure and emotion brought by every melody and lyric in your driving career.
