Toyota FJ audio upgrade, the perfect integration of American DD bass inversion and professional modification technology

Car audio modification is a delicate project with extremely stringent process requirements. A set of audio equipment with excellent performance is, in essence, still a “semi-finished product” when it leaves the production line. Whether it can ultimately exert at least 70% or even more of its design potential in the complex interior environment depends entirely on the subsequent modification process level-this covers accurate installation and positioning, scientific acoustic processing, reliable circuit layout and rigorous debugging and calibration, and every link profoundly affects the ultimate performance of the system.

The owner of Toyota FJ Cruiser who served this time has chosen us for audio upgrade for the second time. He is an old friend who has a persistent pursuit of sound quality. In order to maximize the existing investment, the owner plans to transplant some high-quality audio equipment unloaded from the previous car into this brand-new FJ car. In the process of sound system transplantation, the wire part is often difficult to use because its length and direction need to completely match the structure of the new car. Therefore, we have newly configured the Barney (brand) professional horn cable with excellent reputation for car owners. For the subwoofer part, the owner chose the highly acclaimed eight-inch unit of American DD (Digital Designs), and we will tailor an inverted mold complementary box that perfectly integrates with the recessed space inside the trunk of the original car to achieve the best balance between space utilization and low frequency effect. Next, we will present this systematic modification process that combines equipment transplantation and new customization through detailed graphic records.

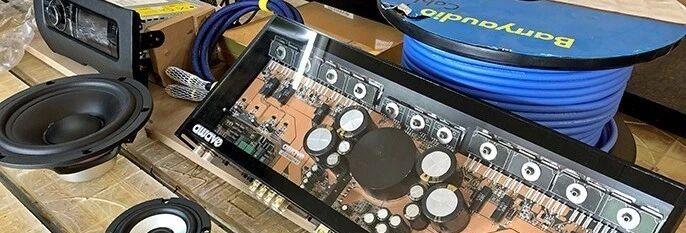

The picture above shows a group photo of the complete set of core equipment of the audio system to be implanted in the Toyota FJ car, which includes the original equipment and newly upgraded components provided by the owner.

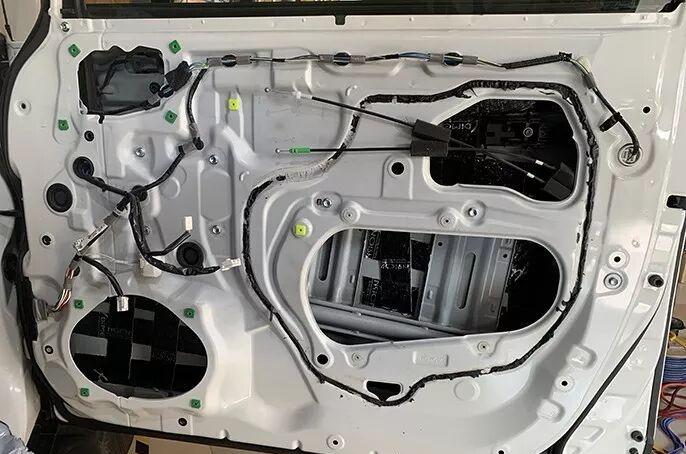

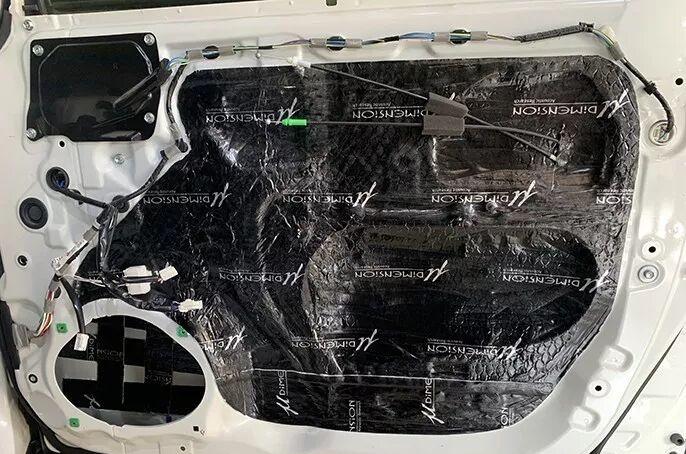

The first step in retrofitting is to create an ideal acoustic foundation. First of all, we carried out professional multi-layer sound insulation treatment on the four doors, using high-quality vibration-stopping plates and sound-absorbing cotton to effectively suppress sheet metal resonance and block external noise, creating a stable and quiet “working environment” for the door speakers.

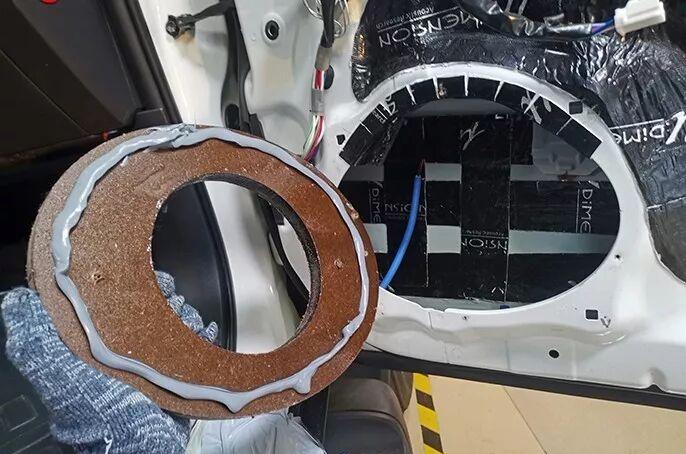

Once soundproofing is complete, install a tailor-made dedicated horn gasket. We always adhere to uniform craftsmanship standards. Regardless of the source of equipment, every installation strictly follows our professional specifications to ensure firm, sealed and optimal acoustic coupling.

The Barney brand speaker cable selected this time uses high-quality 7 N single crystal copper as the conductor material. This material has extremely low signal transmission loss and excellent conductive characteristics, which can faithfully restore sound details and provide a pure signal channel for the entire system.

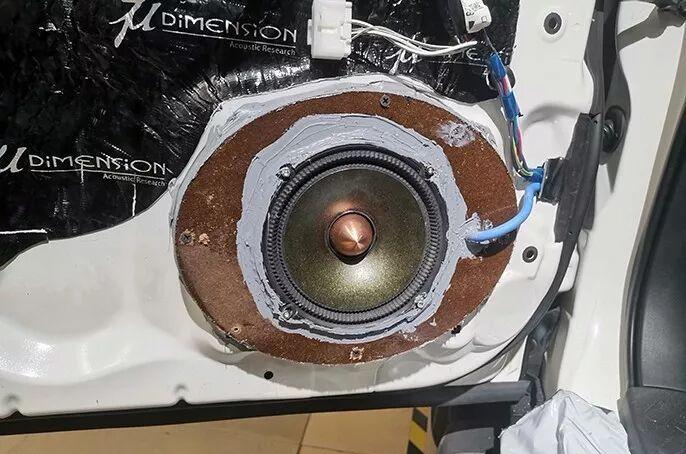

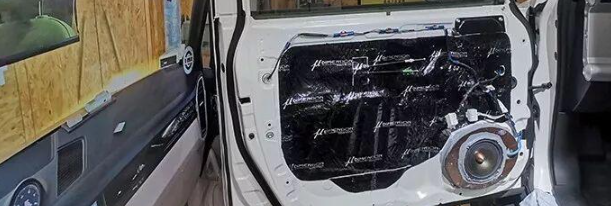

The effect of the woofer unit in the door after it is installed. The details of the process are rigorous and the wiring is neat and standardized, laying a solid foundation for excellent medium and low frequency performance.

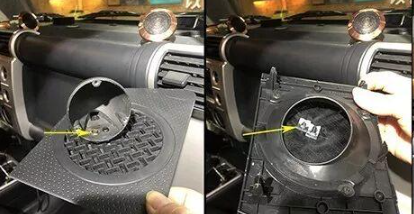

The positioning and fixation of the tweeter is the key to influence the acoustic field image formation. Through fine measurement and hand-crafting, we ensure that its pointing angle is accurate, the installation is stable and beautiful.

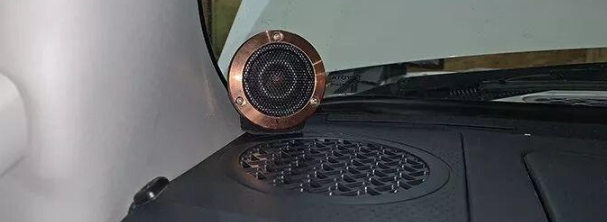

The overall visual effect after the modification of the front sound field tweeter is harmonious with the original car interior style.

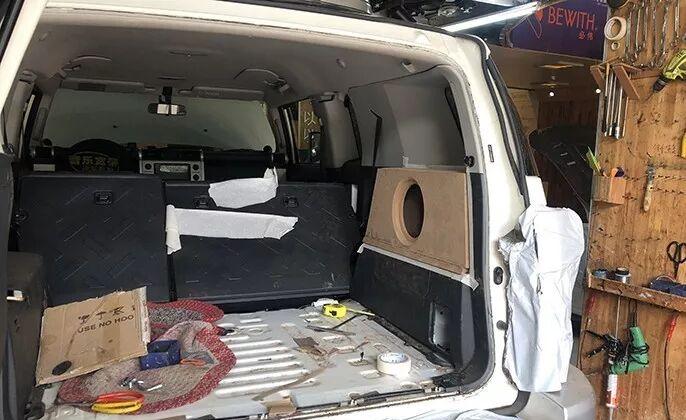

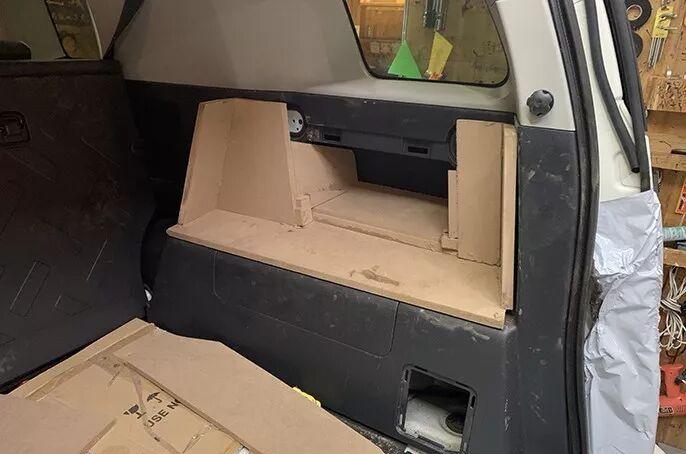

During the whole modification process, the production of the subwoofer complementary box is particularly time-consuming and tests skills. The concave structure of the side wall of the FJ trunk is complex. It is far from as simple as it seems to manually create a box with precise volume, solid structure and completely integrated appearance with the original car. From skeleton construction, volume calculation to surface shaping, every step requires rich experience and great patience.

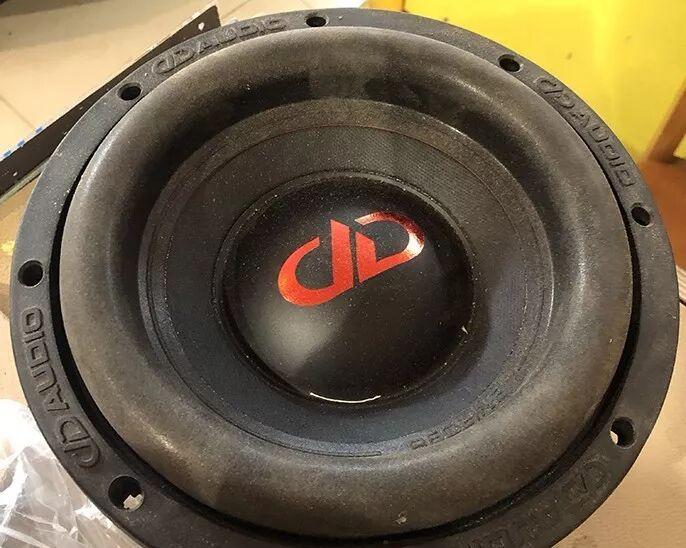

The core woofer unit, American DD eight-inch subwoofer, is famous for its compact size, surging energy and precise control, and has won the sales champion of the same level for two consecutive years, and its performance and reputation have been fully verified by the market.

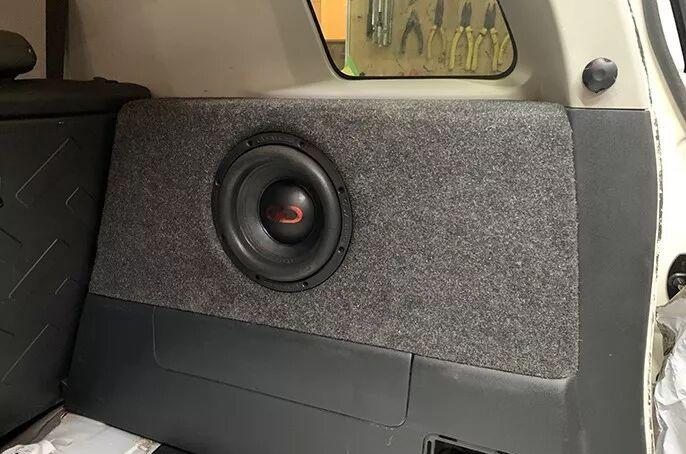

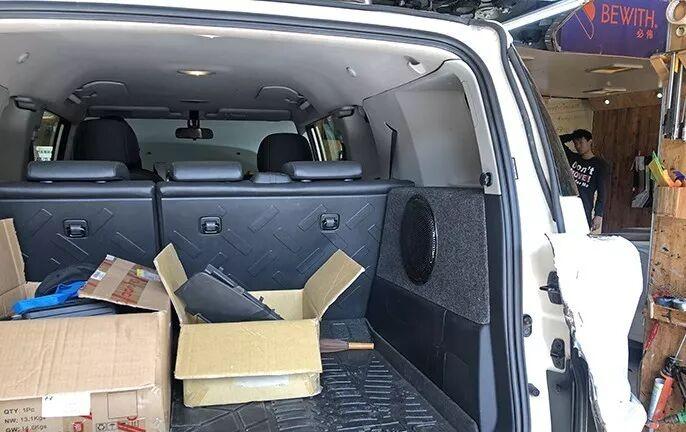

The effect after the subwoofer cabinet is finally made and installed in place. Its surface coating material is highly matched with the texture and color of the original car interior, achieving visual “stealth” and “zero encroachment” in space.

The final low-frequency effect not only fully meets the owner’s expectations, but also brings surprises that exceed expectations in terms of texture, dive depth and speed.

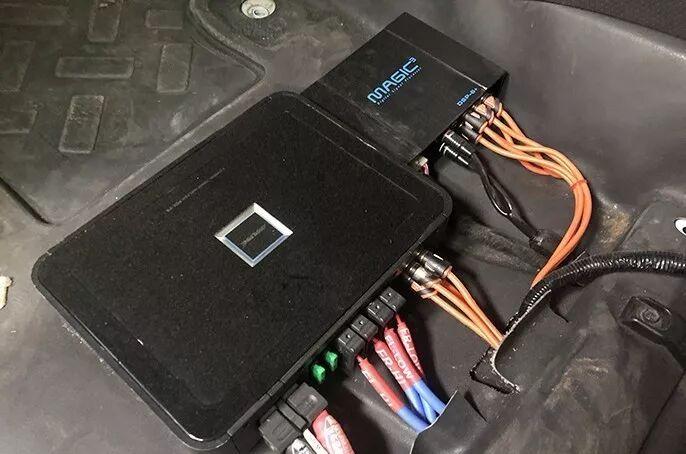

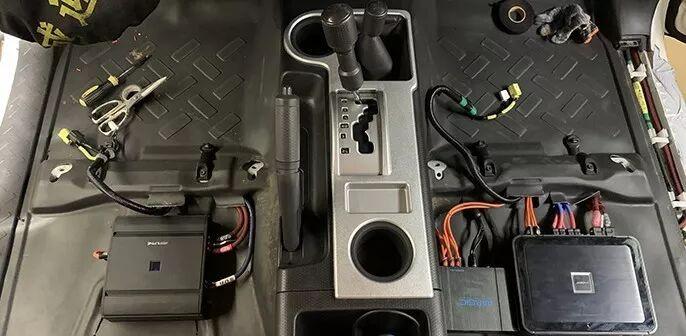

The core electronic equipment is installed in a concealed way. An Alpine four-channel power amplifier and a Magic Cube DSP digital audio processor are integrated and installed under the passenger seat, saving space and facilitating heat dissipation.

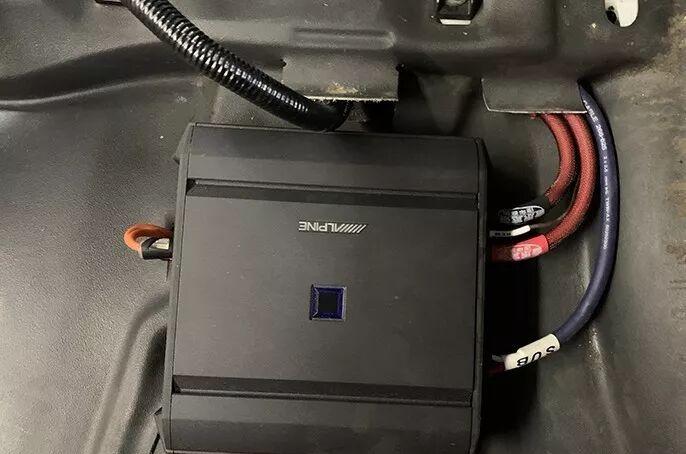

Another Alpine high-power single-channel power amplifier used to drive subwoofer is symmetrically installed under the driver’s seat to achieve a balanced distribution of weight and a neat layout of the system.

After the installation of all post-stage equipment, the overall layout effect and orderly wiring reflect the specifications and aesthetics of professional modification.

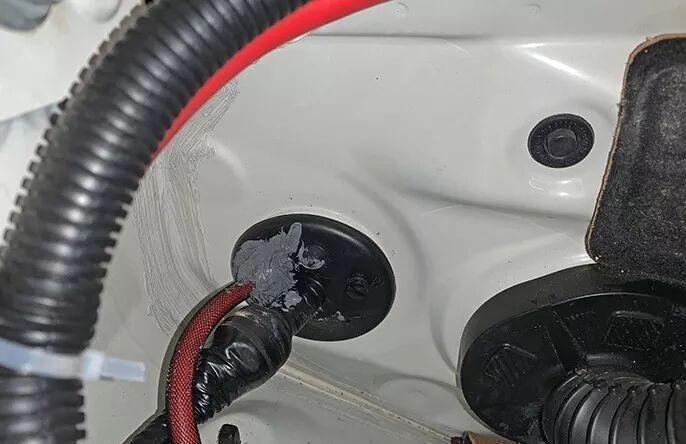

In professional modification, safety and details are never ignored. The picture shows the main power cord of the sound system passing through the body firewall and entering the entrance of the cockpit. We carry out careful sealing treatment here, and use special sealants to ensure that it is waterproof, dustproof, abnormal noise proof, and meets the original factory safety standards.



So far, the sound system transplantation and upgrade project of this Toyota FJ Cruiser has been successfully completed. From rigorous acoustic foundation building to precise cabinet customization, from standardized equipment installation to meticulous safety treatment, every step embodies our persistence in craftsmanship. We are honored to serve this loyal customer again and have successfully delivered a mobile music space that combines excellent sound, perfect space integration and high reliability.
